396-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 37POS 0.125
| Part | Termination Rows | Material - Insulation | Number of Rows | Card Type | Read Out | Number of Positions/Bay/Row | Contact Finish | Termination | Pitch | Pitch | Contact Material | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Mounting Type | Contact Type | Color | Number of Positions | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Right Angle Through Hole | Cantilever | Black | 37 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Right Angle Through Hole | Cantilever | Black | 37 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Right Angle Through Hole | Cantilever | Black | 37 | |||

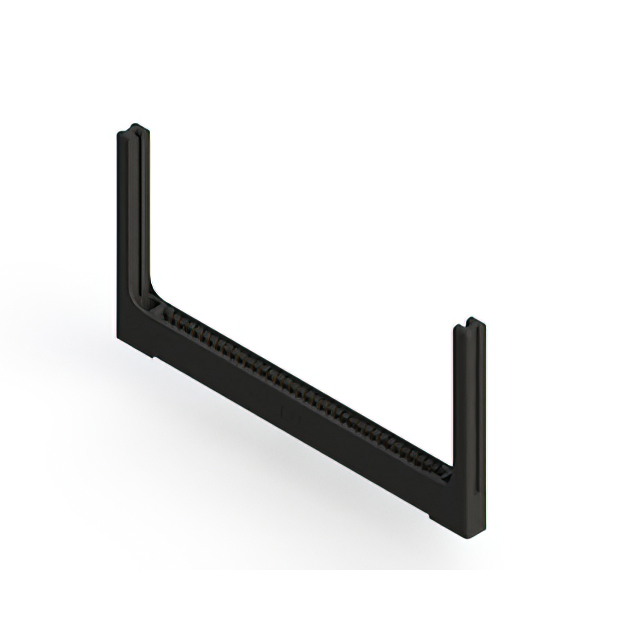

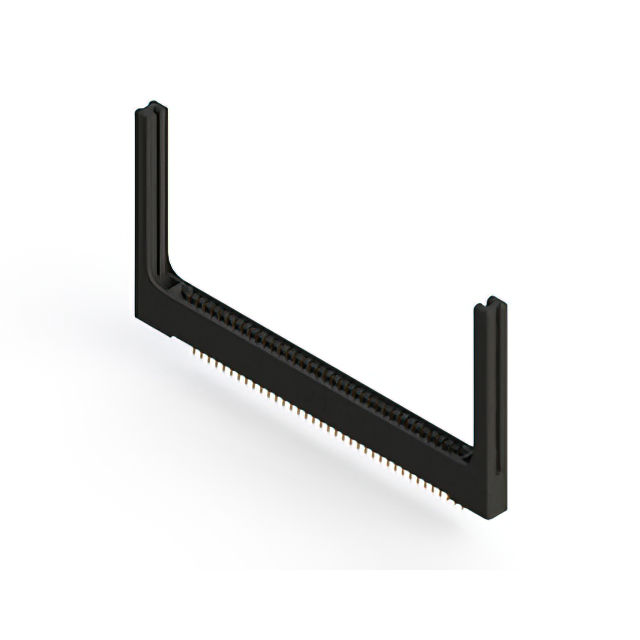

 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Cantilever | Black | 37 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Side Mount Opening Unthreaded | Through Hole | Cantilever | Black | 37 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Cantilever | Black | 37 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Cantilever | Black | 37 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Floating Bobbin Flush Mount | Right Angle Through Hole | Cantilever | Black | 37 | 0.116 " | 2.95 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Right Angle Through Hole | Cantilever | Black | 37 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Single | 37 | Gold | Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Through Hole | Cantilever | Black | 37 |
