88190 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

010 HOUSING FFC PIN DR 100CL ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Insulation Diameter	Insulation Diameter [Min]	Insulation Diameter [Max]	Note	Housing Color	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Number of Positions	Pitch	Pitch	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Locking Feature	Number of Rows [custom]	Housing Material	Features	Flat Flex Type	Material Flammability Rating
TE Connectivity AMP Connectors 3-88190-0	1.5 A	1.55 mm 1.75 mm	0.061 in	0.069 in	Contacts Not Included	Black	24 AWG	22 AWG	300 VDC	10	0.1 "	2.54 mm	0.015 mm	105 ░C	-65 ░C	Housing for Male Contacts	Detent Lock	2	Glass Filled Nylon Polyamide (PA)	Flange Positions Stamped	Discrete Wire FFC	UL94 V-0
TE Connectivity AMP Connectors 88190-2	1.5 A	1.55 mm 1.75 mm	0.061 in	0.069 in	Contacts Not Included	Black	24 AWG	22 AWG	300 VDC	38	0.1 "	2.54 mm	0.015 mm	105 ░C	-65 ░C	Housing for Male Contacts	Detent Lock	2	Glass Filled Nylon Polyamide (PA)	Flange Positions Stamped	Discrete Wire FFC	UL94 V-0

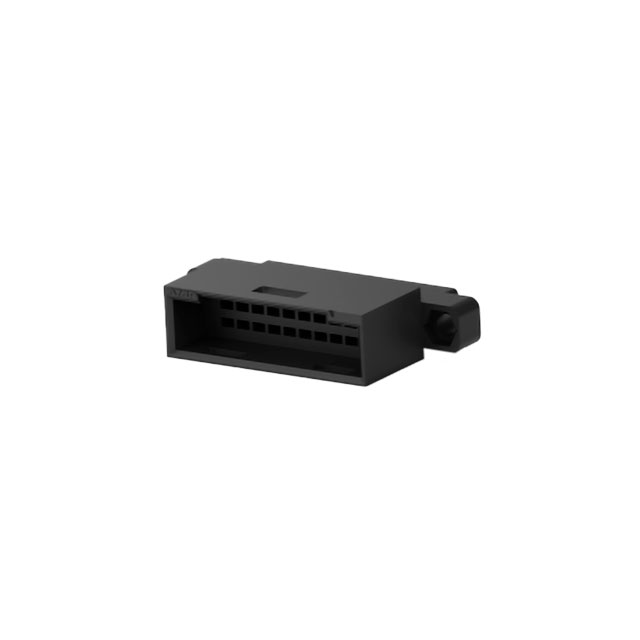

TE Connectivity AMP Connectors 88190-8	1.5 A	1.55 mm 1.75 mm	0.061 in	0.069 in	Contacts Not Included	Black	24 AWG	22 AWG	300 VDC	20	0.1 "	2.54 mm	0.015 mm	105 ░C	-65 ░C	Housing for Male Contacts	Detent Lock	2	Glass Filled Nylon Polyamide (PA)	Flange Positions Stamped	Discrete Wire FFC	UL94 V-0
TE Connectivity AMP Connectors 88190-6	1.5 A	1.55 mm 1.75 mm	0.061 in	0.069 in	Contacts Not Included	Black	24 AWG	22 AWG	300 VDC	18	0.1 "	2.54 mm	0.015 mm	105 ░C	-65 ░C	Housing for Male Contacts	Detent Lock	2	Glass Filled Nylon Polyamide (PA)	Flange Positions Stamped	Discrete Wire FFC	UL94 V-0
TE Connectivity AMP Connectors 1-88190-0	1.5 A	1.55 mm 1.75 mm	0.061 in	0.069 in	Contacts Not Included	Black	24 AWG	22 AWG	300 VDC	24	0.1 "	2.54 mm	0.015 mm	105 ░C	-65 ░C	Housing for Male Contacts	Detent Lock	2	Glass Filled Nylon Polyamide (PA)	Flange Positions Stamped	Discrete Wire FFC	UL94 V-0
