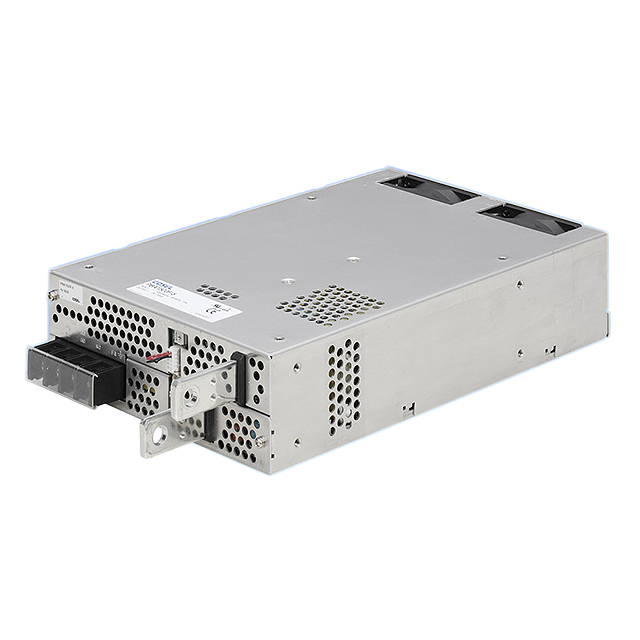

PBA1500 Series

Catalog

AC/DC CONVERTER 24V

...

Part	Mounting Type	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Current - Output 1	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [custom]	Power (Watts)
Cosel USA, Inc. PBA1500T-24-G	Chassis Mount	1	ITE (Commercial)	70 °C	-10 °C	87 %	24 V	170 VAC	264 VAC	3000 V	70 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PBA1500T-24-CF3	Chassis Mount	1	ITE (Commercial)	70 °C	-10 °C	87 %	24 V	170 VAC	264 VAC	3000 V	70 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PBA1500F-5-C	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	81 %	5 V			3000 V	300 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PBA1500F-36-CF4	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	87 %				3000 V	47 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm	36 V	1692 W
Cosel USA, Inc. PBA1500F-15-CF3	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	86 %	15 V			3000 V	100 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PBA1500F-24-F4	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	87 %	24 V			3000 V	70 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm		1680 W
Cosel USA, Inc. PBA1500F-15-CF4	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	86 %	15 V			3000 V	100 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PBA1500T-24-GF3	Chassis Mount	1	ITE (Commercial)	70 °C	-10 °C	87 %	24 V	170 VAC	264 VAC	3000 V	70 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PBA1500F-24-F3	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	87 %	24 V			3000 V	70 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm		1680 W
Cosel USA, Inc. PBA1500F-12-G	Chassis Mount	1	ITE (Commercial)	70 °C	-20 °C	84 %	12 V			3000 V	125 A	CE cURus TUV	Enclosed	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
