MAX8815A Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

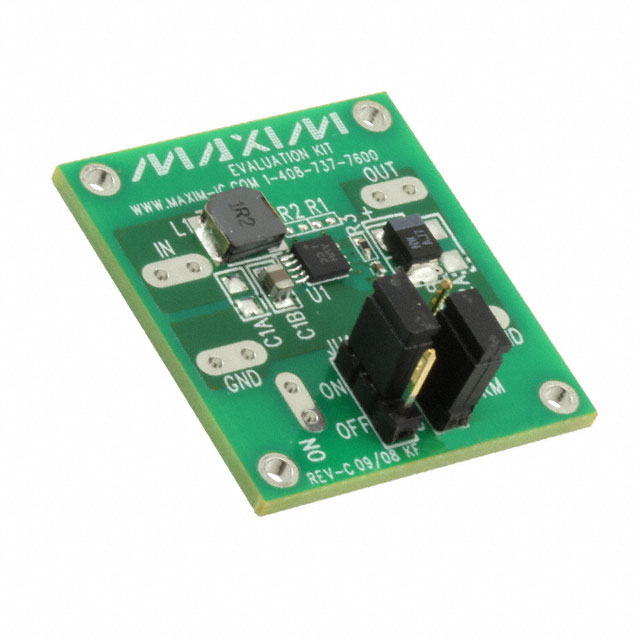

POWER MANAGEMENT IC DEVELOPMENT TOOLS EVAL KIT MAX8815A (1A, 97 EFFICIENCY, 3
| Part | Supplied Contents | Board Type | Power - Output | Outputs and Type | Outputs and Type | Main Purpose | Frequency - Switching | Regulator Topology | Voltage - Output | Contents | Current - Output | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output (Max) [Max] | Topology | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Voltage - Output (Min/Fixed) | Number of Outputs | Output Configuration | Output Type | Function | Supplier Device Package | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | Fully Populated | 5 W | 1 | 1 Non-Isolated Output Non-Isolated | DC/DC Step Up | 2 MHz | Boost | 5 V | Board(s) | 1 A | MAX8815A | 5.5 V | 1.2 VDC | ||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 2 MHz | 2.75 A | 5 V | Boost | 5.5 V | 1.2 V | 85 C | -40 ¯C | 5 V | 3.3 V | 1 | Positive | Adjustable (Fixed) | Step-Up | 10-TDFN (3x3) | 10-WFDFN Exposed Pad | Surface Mount |
