S2E250 Series

Catalog

AC AXIAL FAN

Part	Current Rating (Amps)	Material - Blade	Ingress Protection	RPM	Termination	Power (Watts)	Width [y]	Voltage - Rated	Fan Type	Bearing Type	Operating Temperature	Operating Temperature	Size / Dimension [diameter]	Size / Dimension	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Approval Agency	Width [x]

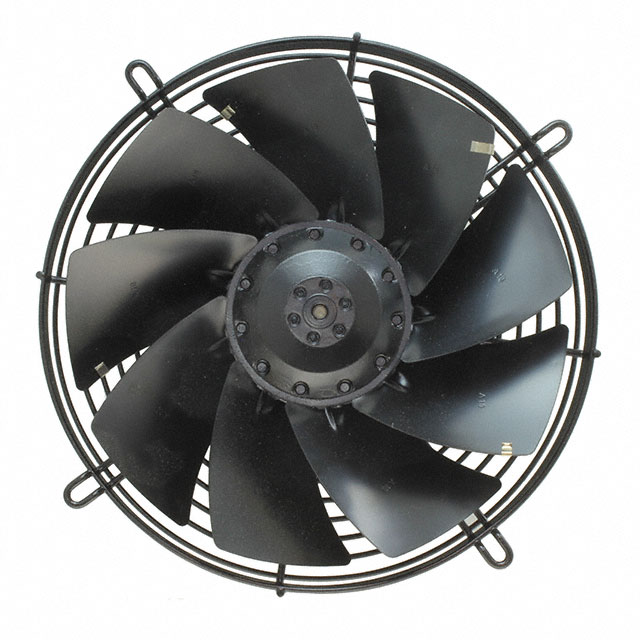

ebm-papst Inc. S2E250-AM08-15	1.45 A	Steel	IP44	2700 RPM	Terminal Block	165 W	138.9 mm	115 VAC	Tubeaxial	Ball	60 °C	60 °C	300 mm	Round	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. S2E250-AL06-01	660 mA	Steel	IP44	2600 RPM	7 Wire Leads with Splice Terminals	150 W	84 mm	230 VAC	Tubeaxial	Ball			300 mm	Round	Capacitor Thermal Overload Protector (TOP)	50 °C	-25 °C	-25 °C	50 °C	0.341 in H2O	85 Pa	CCC CE EAC
ebm-papst Inc. S2E250-BM06-01	660 mA	Steel	IP44	2600 RPM	4 Wire Leads with Splice Terminals	150 W	76.4 mm	230 VAC	Tubeaxial	Ball			290 mm	Round	Capacitor Thermal Overload Protector (TOP)	50 °C	-25 °C	-25 °C	50 °C	0.341 in H2O	85 Pa	CCC CE EAC

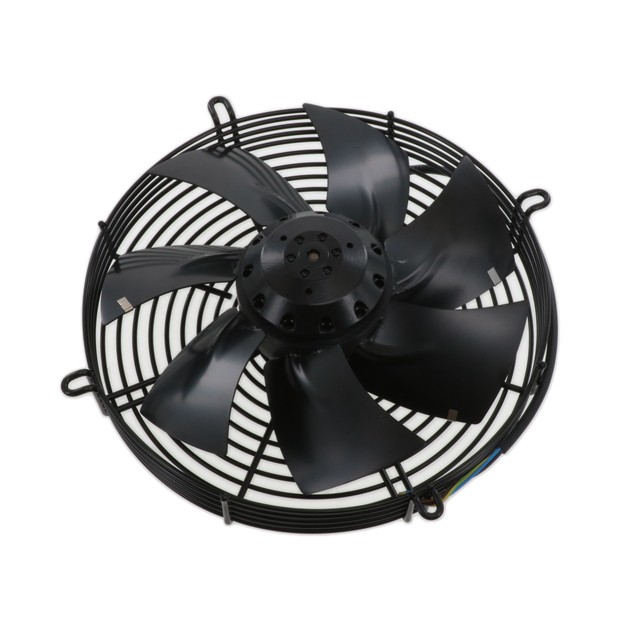

ebm-papst Inc. S2E250-AL06-70	0.73 A	Steel	IP44	2600 RPM	4 Wire Leads with Splice Terminals	175 W		230 VAC	Tubeaxial	Ball			300 mm	Round	Capacitor Thermal Overload Protector (TOP)			-25 °C	35 °C	0.341 in H2O	85 Pa	CE CSA UL	84.7 mm

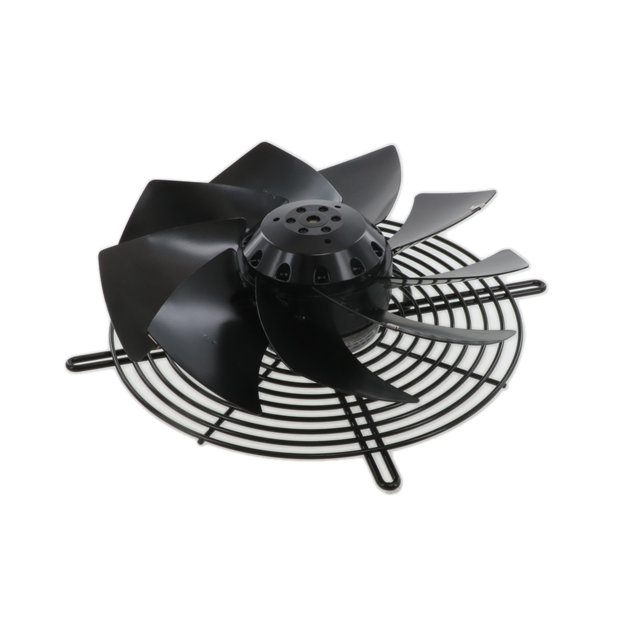

ebm-papst Inc. S2E250-BM08-70	1.45 A	Steel	IP44	2700 RPM	4 Wire Leads with Splice Terminals	165 W		115 VAC	Tubeaxial	Ball	40 °C	40 °C	290 mm	Round	Capacitor Thermal Overload Protector (TOP)							CSA UL	73 mm
