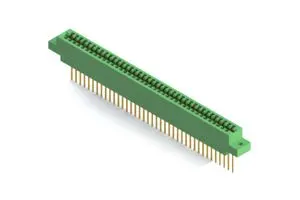

317-039 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 39 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Pitch | Pitch | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Read Out | Contact Type | Number of Positions | Color | Card Type | Number of Positions/Bay/Row | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Wire Wrap | Gold | -65 ░C | 125 °C | Copper Alloy | Single | Cantilever | 78 | Green | Non Specified - Dual Edge | 39 | Through Hole | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Wire Wrap | Gold | -65 ░C | 125 °C | Copper Alloy | Single | Cantilever | 78 | Green | Non Specified - Dual Edge | 39 | Through Hole | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Wire Wrap | Gold | -65 ░C | 125 °C | Copper Alloy | Single | Cantilever | 78 | Green | Non Specified - Dual Edge | 39 | Through Hole | M3 Threaded Insert Top Mount Opening |
