PPL300 Series

Catalog

AC/DC DESKTOP ADAPTER 48V 300W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Efficiency	Form	Voltage - Output	Operating Temperature [Max]	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Cord Length	Cord Length	Input Connector	Output Connector	Output Connector	Approval Agency	Region Utilized	Current - Output (Max) [Max]	Applications	Input Type	Cord Length

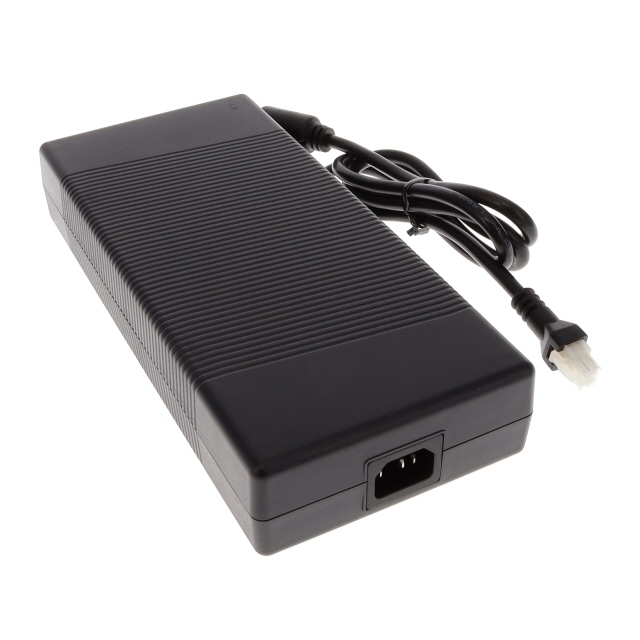

Phihong USA PPL300U-480	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	300 W	Level VI	Desktop (Class I)	48 V	40 °C	62368-1	264 VAC	90 VAC	500 mW	1.2 m	47.2 in	IEC 320-C14	Rectangular	6 Position	cULus IEC	International	6.25 A	ITE (Commercial)	Cord (Sold Separately)
Phihong USA PPL300U-120	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	288 W	Level VI	Desktop (Class I)	12 V	40 °C		264 VAC	90 VAC	500 mW	39.4 in		IEC 320-C14	Rectangular	6 Position	cULus IEC	International	24 A	ITE (Commercial)	Cord (Sold Separately)	1 m

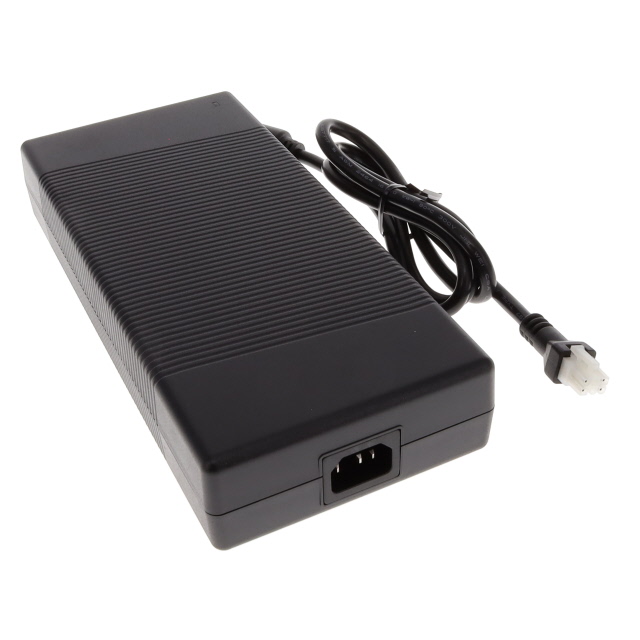

Phihong USA PPL300U-240	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	300 W	Level VI	Desktop (Class I)	24 V	40 °C	62368-1	264 VAC	90 VAC	500 mW	1.2 m	47.2 in	IEC 320-C14	Rectangular	6 Position	cULus IEC	International	12.5 A	ITE (Commercial)	Cord (Sold Separately)
