IL-S-8 Series

Catalog

CONN HEADER VERT 8POS 2MM

Part	Mated Stacking Heights	Number of Positions Loaded	Number of Rows	Insulation Material	Insulation Color	Contact Shape	Shrouding	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Voltage Rating	Style	Current Rating (Amps)	Contact Material	Contact Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Note	Pitch [x]	Pitch [x]	Contact Termination
JAE Electronics IL-S-8P-S2T2-EF	7.5 mm	All	1	Nylon 6/6 Polyamide (PA66)	Brown	Square	Shrouded - 4 Wall	0.138 in	3.5 mm	UL94 V-0	300 VAC 400 V	Board to Cable/Wire	3 A	Brass	Male Pin	Through Hole	0.126 in	3.2 mm	0.079 "	2 mm	8	85 °C	-40 C	Kinked Pin Solder	Header	Detent Lock	0.217 in	5.51 mm	Tin

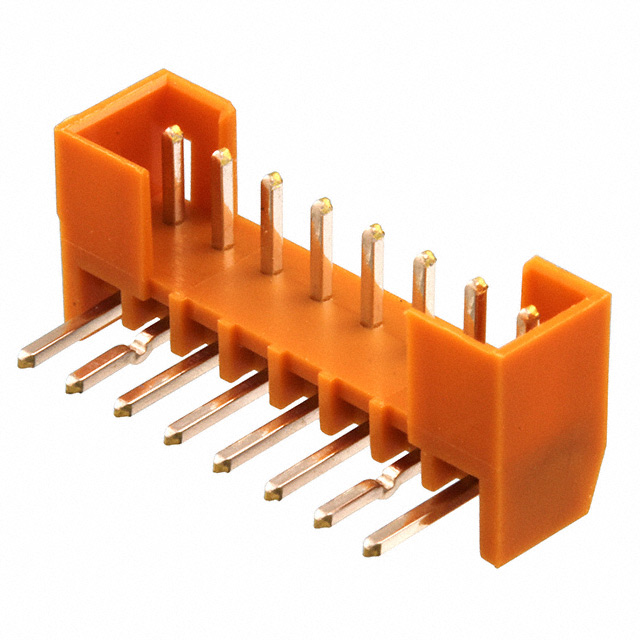

JAE Electronics IL-S-8P-S2L2-EF		All	1	Nylon 6/6 Polyamide (PA66)	Brown	Square	Shrouded - 4 Wall	0.138 in	3.5 mm	UL94 V-0	300 VAC 400 V	Board to Cable/Wire	3 A	Brass	Male Pin	Right Angle Through Hole	0.126 in	3.2 mm	0.079 "	2 mm	8	85 °C	-40 C	Kinked Pin Solder	Header	Push-Pull	0.177 in	4.5 mm	Tin
JAE Electronics IL-S-8S-S2C2-S			1	Nylon 6/6 Polyamide (PA66)											Female Socket	Free Hanging (In-Line)					8	85 °C	-40 C		Receptacle					Contacts Not Included	0.079 in	2 mm	Crimp
JAE Electronics IL-S-8S-S2C2			1	Nylon 6/6 Polyamide (PA66)											Female Socket	Free Hanging (In-Line)					8	85 °C	-40 C		Receptacle					Contacts Not Included	0.079 in	2 mm	Crimp
