LM3S2016 Series
Manufacturer: Luminary Micro Division of Texas Instruments
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

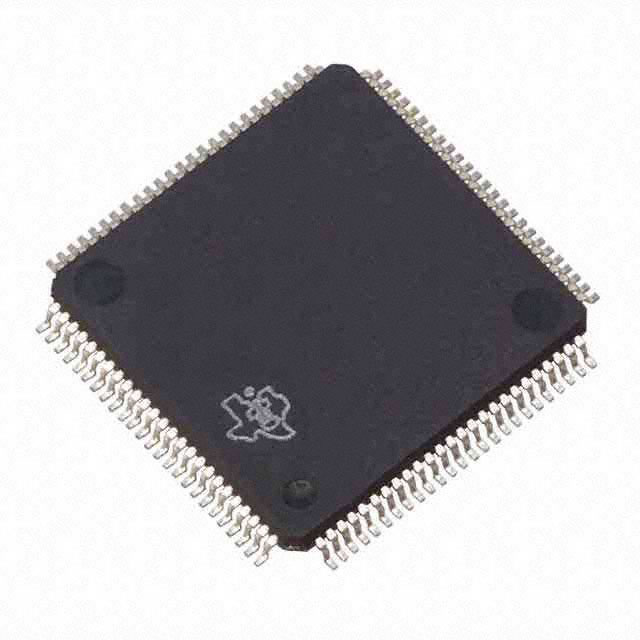

IC MCU 32BIT 64KB FLASH 100LQFP
| Part | Peripherals | Operating Temperature (Max) | Operating Temperature (Min) | Program Memory Type | Voltage - Supply (Vcc/Vdd) Minimum | Voltage - Supply (Vcc/Vdd) Maximum | Package / Case | Connectivity | Program Memory Depth | Program Memory Width | Program Memory Size | A/D Channels | A/D Resolution (bits) | Core Size (Bit Width) | Oscillator Type | Package Width | Package Name | Package Length | Mounting Type | Number of I/O | Core Processor | Speed | RAM Size Width | RAM Size Depth | Core Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminary Micro Division of Texas Instruments | Brown-out Detect POR PWM Reset WDT | 85 °C | -40 °C | FLASH | 2.25 V | 2.75 V | 100-LQFP | CANbus I2C IrDA Microwire SPI SSI UART USART | 64 K | 8 bit | 64 KB | 4 count | 10 bit | 32 Bit | Internal | 14 mm | 100-LQFP | 14 mm | Surface Mount | 40 | ARM® Cortex®-M3 | 50 MHz | 8 bit | 8 K | Single-Core |
