B3DA Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 12V

Part	Mechanical Life	Switch Travel	Ingress Protection	Actuator Orientation	Illumination	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Circuit	Operating Force	Actuator Type	Mounting Type

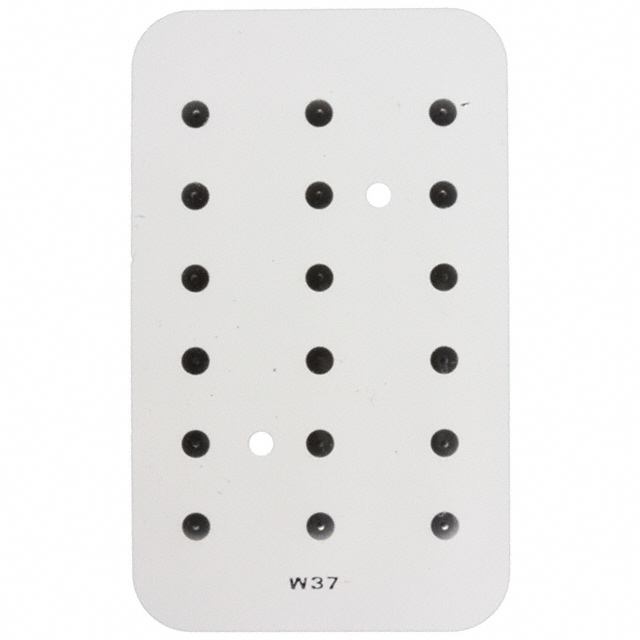

Omron Electronics Inc-EMC Div B3DA-0010-A	500000 Cycles	0.2 mm	Dust Proof	Top Actuated	Non-Illuminated	0.01 A 12 VDC	0.25 mm	80 °C	-40 C	Off-Mom	Circular Contact	SPST-NO	157 gf	Snap Dome	Adhesive Surface Mount

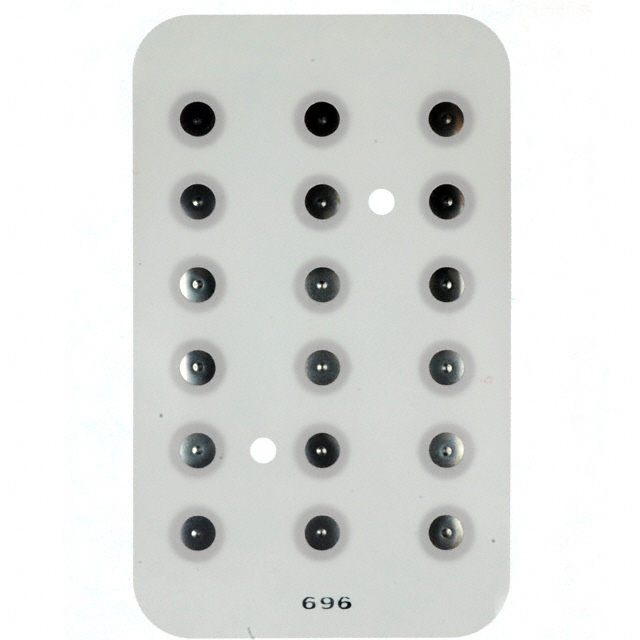

Omron Electronics Inc-EMC Div B3DA-0000-A	1000000 Cycles	0.2 mm	Dust Proof	Top Actuated	Non-Illuminated	0.01 A 12 VDC	0.25 mm	80 °C	-40 C	Off-Mom	Circular Contact	SPST-NO	157 gf	Snap Dome	Adhesive Surface Mount
