EVQ-PA Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Switch Travel	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Outline [y]	Outline [x]	Operating Force	Mounting Type	Circuit	Actuator Height off PCB, Vertical	Actuator Orientation	Contact Rating @ Voltage [x]	Switch Function	Actuator Type	Actuator Height off PCB, Vertical [z]	Mechanical Life

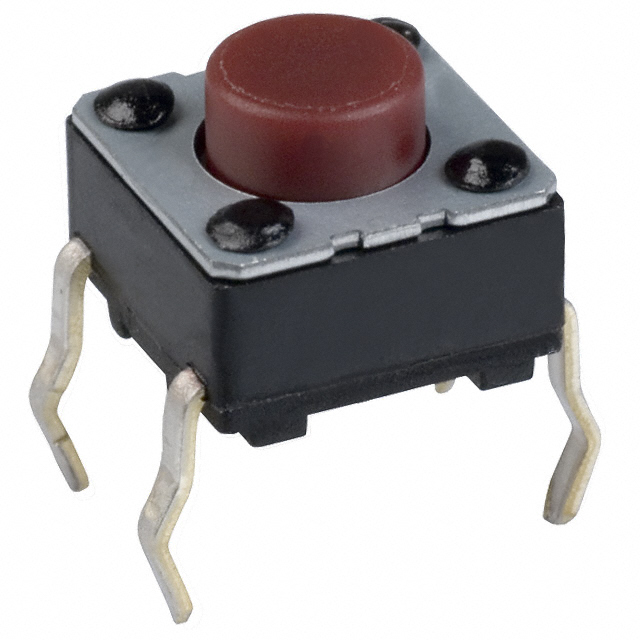

Panasonic Industrial Automation Sales EVQ-PAG05R	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm	260 gf	Through Hole	SPST-NO	5 mm	Top Actuated	0.02 A 15 VDC	Off-Mom	Standard

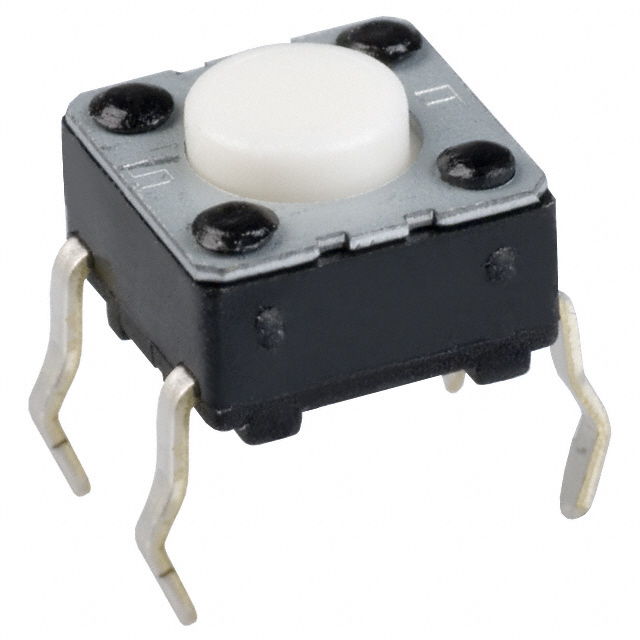

Panasonic Industrial Automation Sales EVQ-PAD04M	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm	130 gf	Through Hole	SPST-NO		Top Actuated	0.02 A 15 VDC	Off-Mom	Standard	4.3 mm	100000 Cycles

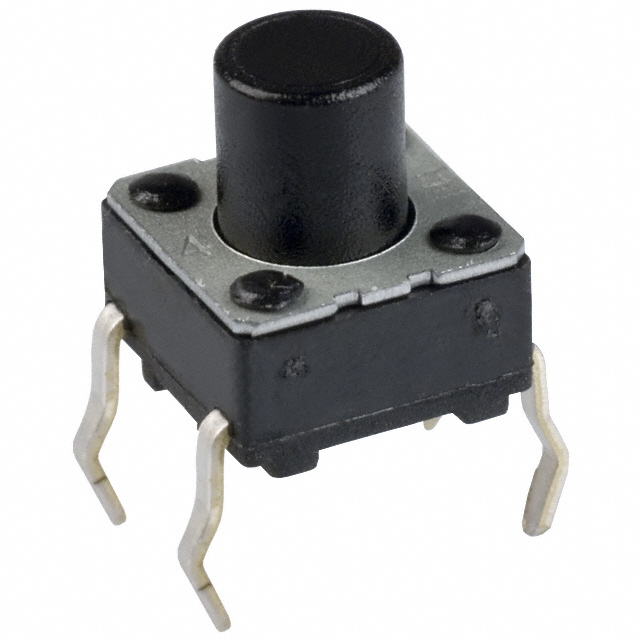

Panasonic Industrial Automation Sales EVQ-PAC07K	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm	100 gf	Through Hole	SPST-NO		Top Actuated	0.02 A 15 VDC	Off-Mom	Standard	7 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PAE07K	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm		Through Hole	SPST-NO		Top Actuated	0.02 A 15 VDC	Off-Mom	Standard	7 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PAD07K	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm	130 gf	Through Hole	SPST-NO		Top Actuated	0.02 A 15 VDC	Off-Mom	Standard	7 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PAE05R	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm		Through Hole	SPST-NO	5 mm	Top Actuated	0.02 A 15 VDC	Off-Mom	Standard		100000 Cycles
Panasonic Industrial Automation Sales EVQ-PAC04M	0.25 mm	Non-Illuminated	-20 C	70 °C	PC Pin	6 mm	6 mm	100 gf	Through Hole	SPST-NO		Top Actuated	0.02 A 15 VDC	Off-Mom	Standard	4.3 mm	100000 Cycles
