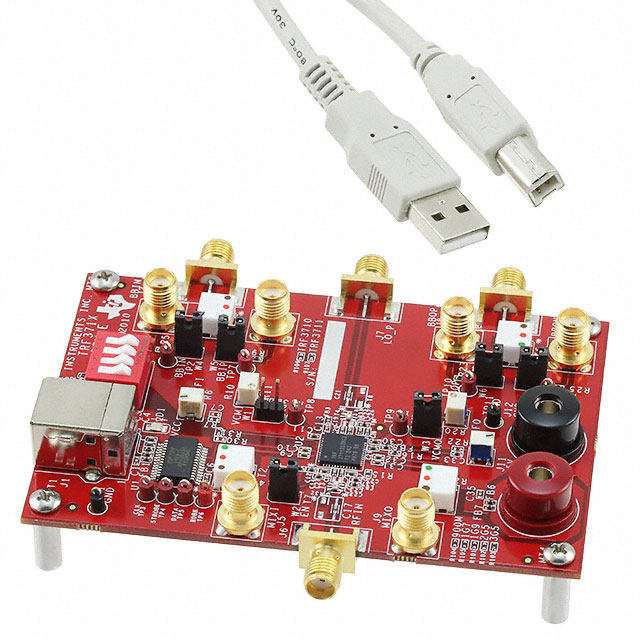

TRF371135 Series

1.7 - 6.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Catalog

1.7 - 6.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Part	Current - Supply	Function	LO Frequency [Max]	LO Frequency [Min]	Mounting Type	Noise Figure	Supplier Device Package	P1dB	RF Frequency [Min]	RF Frequency [Max]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]
Texas Instruments TRF371135IRGZT	370 mA	Demodulator	6 GHz	1.7 GHz	Surface Mount	17.5 dB	48-VQFN (7x7)	3 dBV	1.7 GHz	6 GHz	48-VFQFN Exposed Pad	4.5 V	5.5 V

Catalog

1.7 - 6.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Key Features

• Frequency Range: 1700 MHz to 6000 MHzIntegrated Baseband Programmable-Gain AmplifierOn-Chip Programmable Baseband FilterHigh Out-of-Band IP3: 22 dBm at 3550 MHzHigh Out-of-Band IP2: 52 dBm at 3550 MHzHardware and Software Power DownThree-Wire Serial InterfaceSingle Supply: 4.5-V to 5.5-V OperationSilicon Germanium TechnologyAPPLICATIONSMulticarrier Wireless InfrastructureWiMAXHigh-Linearity Direct-Downconversion ReceiverLTE (Long Term Evolution)All trademarks are the property of their respective owners.Frequency Range: 1700 MHz to 6000 MHzIntegrated Baseband Programmable-Gain AmplifierOn-Chip Programmable Baseband FilterHigh Out-of-Band IP3: 22 dBm at 3550 MHzHigh Out-of-Band IP2: 52 dBm at 3550 MHzHardware and Software Power DownThree-Wire Serial InterfaceSingle Supply: 4.5-V to 5.5-V OperationSilicon Germanium TechnologyAPPLICATIONSMulticarrier Wireless InfrastructureWiMAXHigh-Linearity Direct-Downconversion ReceiverLTE (Long Term Evolution)All trademarks are the property of their respective owners.

Description

The TRF371135 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371135 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output signal level without the need for external variable-gain (attenuator) devices. The TRF371135 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm QFN package, the TRF371135 provides the smallest and most integrated receiver solution available for high-performance equipment. The TRF371135 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371135 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output signal level without the need for external variable-gain (attenuator) devices. The TRF371135 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm QFN package, the TRF371135 provides the smallest and most integrated receiver solution available for high-performance equipment.
