0348-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

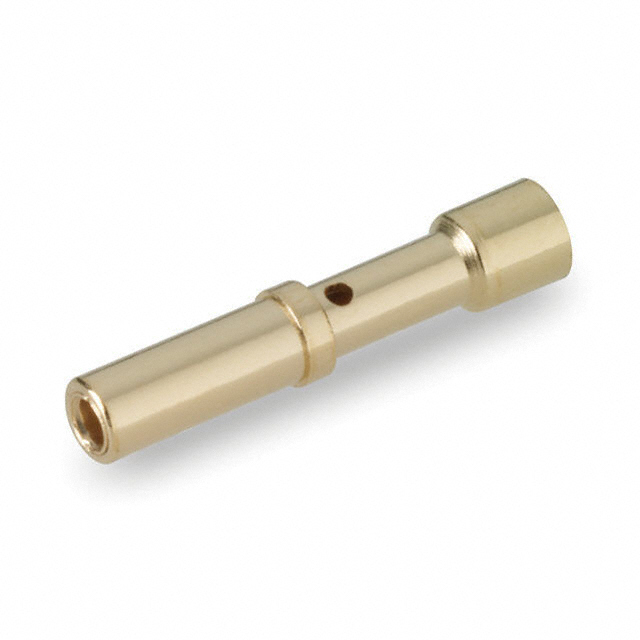

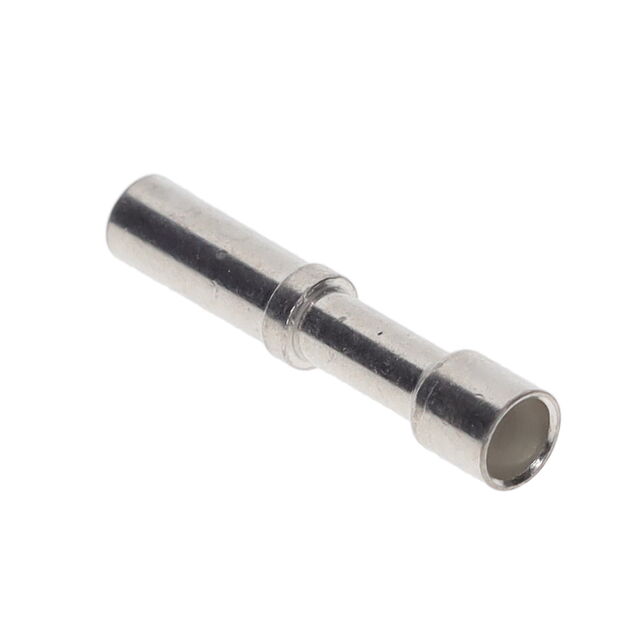

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tail Type | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Socket Depth | Socket Depth | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall | Length - Overall | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 200 Áin | 5.08 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Tin |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 30 Áin | 0.76 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Gold |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 30 Áin | 0.76 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Gold |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 30 Áin | 0.76 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Gold |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 10 Áin | 0.25 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Gold |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 10 Áin | 0.25 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Gold |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | Solder | 10 Áin | 0.25 Ám | 0.122 " | 3.1 mm | 13.46 mm | 0.53 in | Beryllium Copper | Gold |
