BD9483FV Series

White LED Driver for large LCD Panels (DCDC Converter type)

Catalog

White LED Driver for large LCD Panels (DCDC Converter type)

Part	Voltage - Supply (Min) [Min]	Applications	Internal Switch(s)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Max) [Max]	Package / Case	Package / Case	Type	Topology	Mounting Type	Number of Outputs	Frequency	Supplier Device Package	Dimming	Package / Case [y]

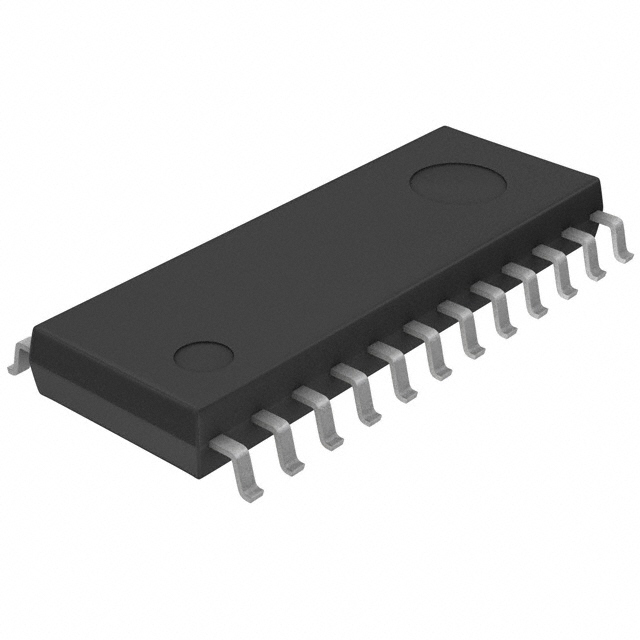

Rohm Semiconductor BD9483F-GE2	11 V	Backlight		85 °C	-40 °C	35 V	0.213 in 5.4 mm	24-SOIC	DC DC Controller	Step-Up (Boost)	Surface Mount	2	150 kHz	24-SOP	Analog PWM
Rohm Semiconductor BD9483FV-GE2	11 V	Backlight		85 °C	-40 °C	35 V	0.22 in	24-LSSOP	DC DC Controller	Step-Up (Boost)	Surface Mount	2	150 kHz	24-SSOP-B	Analog PWM	5.6 mm

Catalog

White LED Driver for large LCD Panels (DCDC Converter type)

Description

BD9483FV is a high efficiency driver for white LEDs and designed for large LCDs. This IC is built-in 2ch boost DCDC converters that employ an array of LEDs as the light source. BD9483FV has some protect function against fault conditions, such as the over-voltage protection (OVP),the over current limit protection of DCDC (OCP), Max duty protection, LED OCP protection. Therefore BD9483FV is available for the fail-safe design over a wide range output voltage.
