ST Series

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Manufacturer: Signal Transformer

Catalog

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Catalog

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Part	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Mounting Type	Voltage - Primary	Primary Winding(s)	Secondary Winding(s)	Type	Weight	Weight	Center Tap	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Power - Max [Max]	Voltage - Isolation	Height - Seated (Max) [Max] [z]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Voltage - Secondary (Full Load)	Current - Output (Max)
Signal Transformer ST-2-28	PC Pin	34.9 mm	28.6 mm	40 mA	80 mA	Through Hole	115 V	Single	Dual	Laminated Core	0.17 lb	77.11 g		14 V	28 V	1.1 VA	2500 Vrms	24.6 mm
Signal Transformer ST-6-48	PC Pin	57.2 mm	47.6 mm			Through Hole	115 V	Single	Dual	Laminated Core	0.8 lb	362.87 g				20 VA	2500 Vrms	36.9 mm	400 mA	800 mA	24 V 48 V

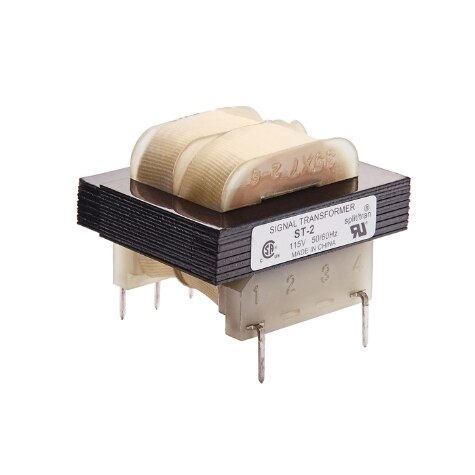

Signal Transformer ST-2-56	PC Pin	34.9 mm	28.6 mm	20 mA	40 mA	Through Hole	115 V	Single	Dual	Laminated Core	0.17 lb	77.11 g				1.1 VA	2500 Vrms	24.6 mm			28 V 56 V

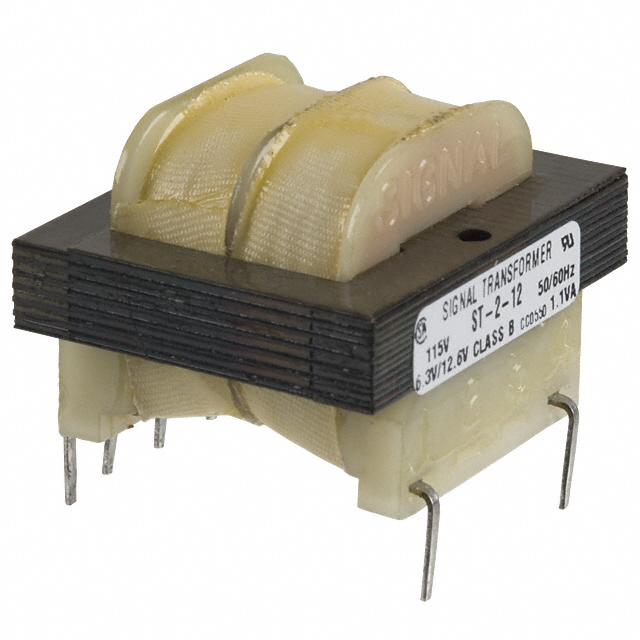

Signal Transformer ST-2-12	PC Pin	34.9 mm	28.6 mm			Through Hole	115 V	Single	Dual	Laminated Core	0.17 lb	77.11 g				1.1 VA	2500 Vrms	24.6 mm			6.3 V 12.6 V	90 mA 180 mA
Signal Transformer ST-6-120	PC Pin	57.2 mm	47.6 mm	160 mA	320 mA	Through Hole	115 V	Single	Dual	Laminated Core	0.8 lb	362.87 g				20 VA	2500 Vrms	36.9 mm			60 V 120 V
