APFA3010 Series

Catalog

LED TRI-COLOR GREEN/RED/YELLOW 574NM/645NM/590NM 4-PIN CHIP LED T/R

Part	Lens Style	Voltage - Forward (Vf) (Typ)	Current - Test	Height (Max) [Max] [z]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Color	Lens Transparency	Millicandela Rating	Package / Case	Supplier Device Package	Lens Size [y]	Lens Size [x]	Configuration	Color	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Mounting Type	Viewing Angle	Current - Test	Wavelength - Peak	Height (Max) [z]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]

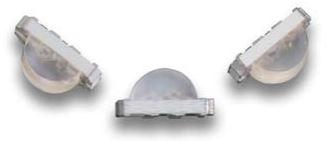

Kingbright APFA3010SURKCGKSYKC	Rectangle with Domed Top	1.95 V 2 V 2.1 V	20 mA 20 mA 20 mA	1.2 mm	590 nm	574 nm	645 nm	Colorless	Clear	45 mcd 180 mcd 220 mcd	4-SMD No Lead	4-SMD	1 mm	2 mm	Common Anode	Green Red Yellow	3 mm	1.5 mm	570 nm 590 nm 630 nm	Right Angle Surface Mount	150 °
Kingbright APFA3010SEEZGQBDC	Rectangle with Domed Top	2 V 3.3 V 3.3 V						Colorless	Clear		4-SMD No Lead	Chip LED	1 mm	2 mm	Common Anode	Blue Green Red	3 mm	1.5 mm	465 nm 525 nm 621 nm	Right Angle Surface Mount	120 °	20mA Blue 20mA Green 20mA Red	460 nm 515 nm 630 nm	1 mm	70 mcd	140 mcd	300 mcd
Kingbright APFA3010SEKJ3ZGKQBKC	Rectangle with Domed Top	2.2 V 3.3 V 3.3 V		1.2 mm				Colorless	Clear		4-SMD No Lead	4-SMD	1 mm	2 mm	Common Cathode	Blue Green Red	3 mm	1.5 mm		Surface Mount	120 °	20mA Blue 20mA Green 20mA Red	460 nm 515 nm 640 nm		70 mcd	410 mcd	500 mcd	465nm Blue 525nm Green 625nm Red
Kingbright APFA3010SEEZGKQBKC	Rectangle with Domed Top	2 V 3.3 V 3.3 V		1.2 mm				Colorless	Clear	70 mcd 140 mcd 500 mcd	4-SMD No Lead	4-SMD	1 mm	2 mm	Common Anode	Blue Green Red	3 mm	1.5 mm	465 nm 525 nm 621 nm	Right Angle Surface Mount	120 °	20mA Blue 20mA Green 20mA Red	460 nm 515 nm 630 nm

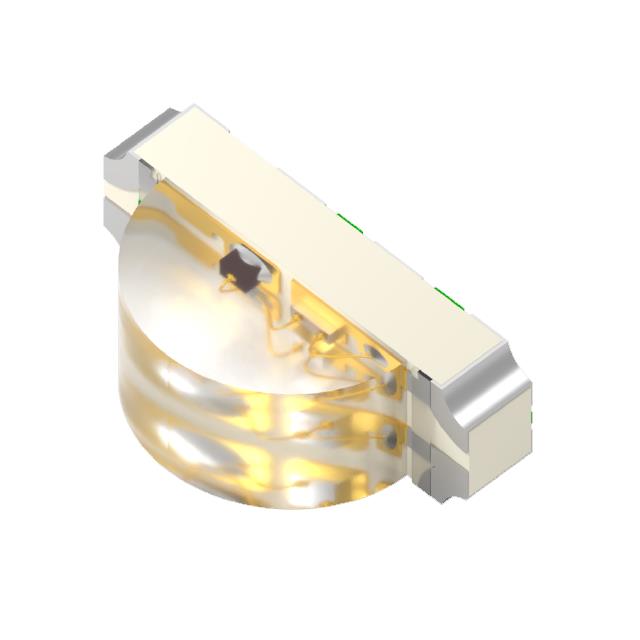

Kingbright APFA3010LSEEZGKQBKC	Rectangle with Domed Top	2.1 V 3.1 V 3.1 V		1.2 mm				Colorless	Clear		4-SMD No Lead	4-SMD	1 mm	2 mm	Common Anode	Blue Green Red	3 mm	1.5 mm	465 nm 525 nm 621 nm	Right Angle Surface Mount	120 ° 150 °		460 nm 515 nm 630 nm	1.1 mm	10 mcd	15 mcd	60 mcd 90 mcd		1.8 V	2.65 V	2.65 V	2 mA	2 mA	2 mA
Kingbright APFA3010SURKCGKQBDC	Round with Domed Top	1.95 V 2.1 V 3.3 V				574 nm	650 nm	Colorless	Clear		4-SMD No Lead	Chip LED	1 mm	2 mm	Common Anode	Blue Green Red	3 mm	1.5 mm	470 nm 570 nm 630 nm	Right Angle Surface Mount	120 °	20mA Blue 20mA Green 20mA Red		1 mm	100 mcd	220 mcd	50 mcd								468 nm
Kingbright APFA3010SURCGKQBDC	Rectangle with Domed Top	1.9 V 2.1 V 3.3 V				574 nm	650 nm	Colorless	Clear		4-SMD No Lead	Chip LED	1 mm	2 mm	Common Anode	Blue Green Red	3 mm	1.5 mm	470 nm 570 nm 630 nm	Right Angle Surface Mount	120 °	20mA Blue 20mA Green 20mA Red		1 mm	100 mcd	250 mcd	50 mcd								468 nm
