TAS5411-Q1 Series

Automotive, 8-W, 1-ch, 4.5- to 18-V analog input Class-D audio amplifier w/ I2C diag & load dump

Catalog

Automotive, 8-W, 1-ch, 4.5- to 18-V analog input Class-D audio amplifier w/ I2C diag & load dump

Part	Package / Case	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Output Power x Channels @ Load	Grade	Features	Mounting Type	Type	Supplier Device Package	Output Type	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Board Type	Supplied Contents	Utilized IC / Part
Texas Instruments TAS5411QPWPRQ1	16-PowerTSSOP	0.173 in 4.4 mm Width	18 V	4.5 V	1 8 W	Automotive	Short Circuit Protection	Surface Mount	Class D	16-HTSSOP	1-Channel (Mono)	AEC-Q100	-40 °C	125 °C

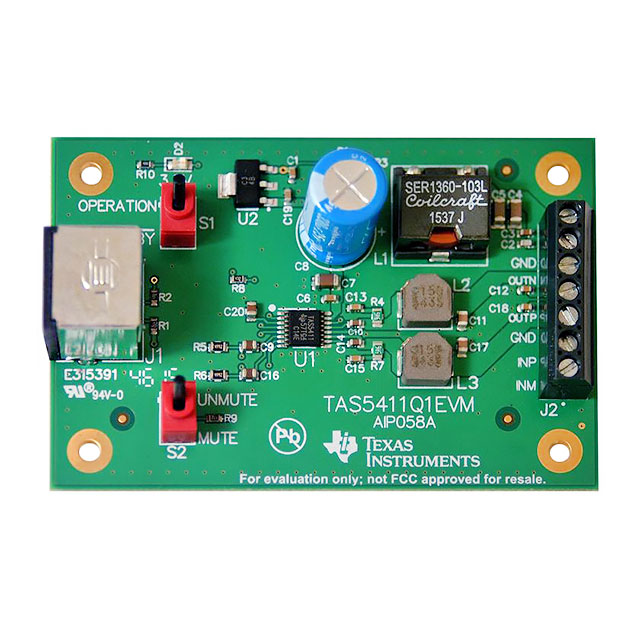

Texas Instruments TAS5411Q1EVM			18 V	5 V	1 8 W						1-Channel (Mono)				Fully Populated	Board(s)	TAS5411-Q1

Catalog

Automotive, 8-W, 1-ch, 4.5- to 18-V analog input Class-D audio amplifier w/ I2C diag & load dump

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating TemperatureDevice HBM Classification Level H2Device CDM Classification Level C5Mono BTL Class-D Power Amplifier8-W Output Power at 10% THD+N Into 4 Ω4.5-V to 18-V Operating Range83% Efficiency Into 4 ΩDifferential Analog InputSpeaker Guard™ Speaker Protection With Adjustable Power Limiter75-dB Power-Supply Rejection Ratio (PSRR)Load Diagnostic Functions:Open and Shorted Output LoadOutput-to-Power and -Ground ShortsProtection and Monitoring Functions:Short-Circuit Protection40-V Load-Dump Protection per ISO-7637-2Output DC Level Detection While Music Is PlayingOvertemperature ProtectionOver- and Undervoltage ProtectionThermally Enhanced 16-Pin HTSSOP (PWP) Package With PowerPAD™ Package (Pad Down)Designed for Automotive EMC RequirementsISO9000: 2002 TS16949 CertifiedQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating TemperatureDevice HBM Classification Level H2Device CDM Classification Level C5Mono BTL Class-D Power Amplifier8-W Output Power at 10% THD+N Into 4 Ω4.5-V to 18-V Operating Range83% Efficiency Into 4 ΩDifferential Analog InputSpeaker Guard™ Speaker Protection With Adjustable Power Limiter75-dB Power-Supply Rejection Ratio (PSRR)Load Diagnostic Functions:Open and Shorted Output LoadOutput-to-Power and -Ground ShortsProtection and Monitoring Functions:Short-Circuit Protection40-V Load-Dump Protection per ISO-7637-2Output DC Level Detection While Music Is PlayingOvertemperature ProtectionOver- and Undervoltage ProtectionThermally Enhanced 16-Pin HTSSOP (PWP) Package With PowerPAD™ Package (Pad Down)Designed for Automotive EMC RequirementsISO9000: 2002 TS16949 Certified

Description

The TAS5411-Q1 is a mono class-D audio amplifier, ideal for use in automotive emergency call (eCall), telematics, and instrument cluster applications. The device provides up to 8 W into 4 Ω at less than 10% THD+N from a 14.4-Vdc automotive battery. The wide operating voltage range and excellent efficiency make the device ideal for start-stop support or running from a backup battery when required. The integrated load-dump protection reduces external voltage clamp cost and size, and the onboard load diagnostics report the status of the speaker through I2C. The TAS5411-Q1 is a mono class-D audio amplifier, ideal for use in automotive emergency call (eCall), telematics, and instrument cluster applications. The device provides up to 8 W into 4 Ω at less than 10% THD+N from a 14.4-Vdc automotive battery. The wide operating voltage range and excellent efficiency make the device ideal for start-stop support or running from a backup battery when required. The integrated load-dump protection reduces external voltage clamp cost and size, and the onboard load diagnostics report the status of the speaker through I2C.
