MF-LR Series

Catalog

PTC RESETTABLE 9.0A 20V AXIAL STRAP /BULK, BAG PACKAGING

Part	Approval Agency	Voltage - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Type	Time to Trip	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current - Hold (Ih) (Max)	Resistance - Initial (Ri) (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]
Bourns Inc. MF-LR900/20-0	cURus TUV	20 V	1.3 mm	0.051 in	Strap	14 mOhms	16.7 A	Polymeric	5 s	8.2 mm	0.323 in	46.5 mm	1.831 in	User Defined	9 A	6 mOhms	85 °C	-40 C	100 A
Bourns Inc. MF-LR600	cURus TUV	10 V	1 mm	0.039 in	Strap	19 mOhms	11.7 A	Polymeric	5 s	14.9 mm	0.587 "	25 mm	0.984 "	User Defined		7 mOhms	85 °C	-40 C	100 A	6 A
Bourns Inc. MF-LR380	cURus TUV	15 V	1 mm	0.039 in	Strap	37 mOhms	8.3 A	Polymeric	5 s	7.2 mm	0.283 in	25 mm	0.984 "	User Defined		13 mOhms	85 °C	-40 C	100 A	3.8 A

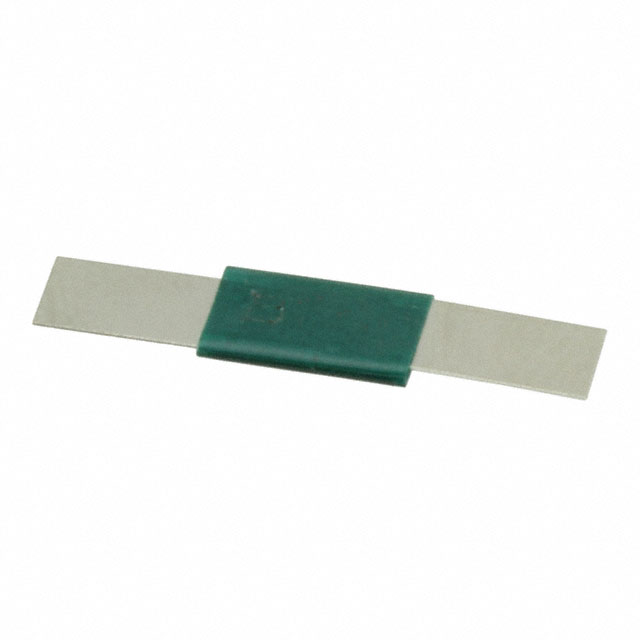

Bourns Inc. MF-LR190	cURus TUV	15 V	1 mm	0.039 in	Strap	102 mOhms	3.9 A	Polymeric	5 s	5.05 mm	0.199 in	21 mm	0.827 "	User Defined		39 mOhms	85 °C	-40 C	100 A	1.9 A
Bourns Inc. MF-LR600S	cURus TUV	10 V	1 mm	0.039 in	Strap	19 mOhms	11.7 A	Polymeric	5 s	14.9 mm	0.587 "	25 mm	0.984 "	User Defined		7 mOhms	85 °C	-40 C	100 A	6 A

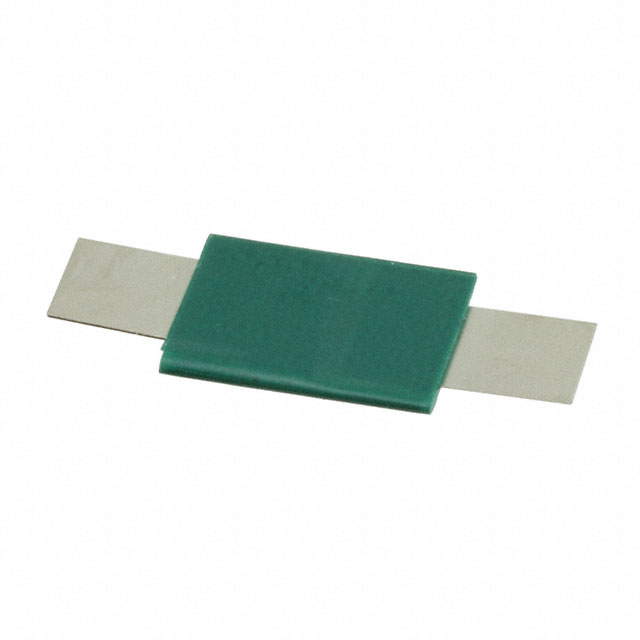

Bourns Inc. MF-LR450	cURus TUV	16 V	1 mm	0.039 in	Strap	28 mOhms	8.9 A	Polymeric	5 s	10.21 mm	0.402 in	25 mm	0.984 "	User Defined	4.5 A	11 mOhms	85 °C	-40 C	100 A
Bourns Inc. MF-LR190S	cURus TUV	15 V	1 mm	0.039 in	Strap	102 mOhms	3.9 A	Polymeric	5 s	5.05 mm	0.199 in	21 mm	0.827 "	User Defined		39 mOhms	85 °C	-40 C	100 A	1.9 A

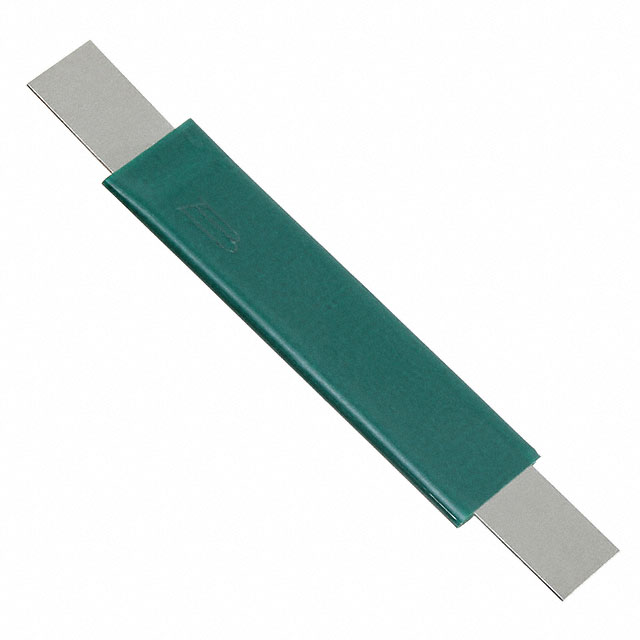

Bourns Inc. MF-LR550	cURus TUV	10 V	1 mm	0.039 in	Strap	22 mOhms	10.5 A	Polymeric	5 s	7.2 mm	0.283 in	36 mm	1.417 in	User Defined		9 mOhms	85 °C	-40 C	100 A	5.5 A

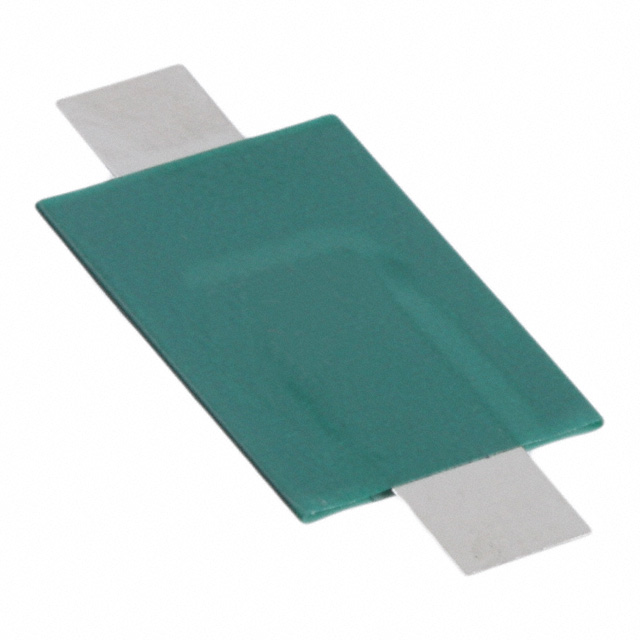

Bourns Inc. MF-LR730/20-0	cURus TUV	20 V	1 mm	0.039 in	Strap	15 mOhms	14.1 A	Polymeric	5 s	14.2 mm	0.559 in	28.1 mm	1.106 "	User Defined		6 mOhms	85 °C	-40 C	100 A	7.3 A
