3061-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tail Type	Contact Material	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish
Mill-Max Manufacturing Corp. 3061-0-19-80-21-84-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	2.54 µm	100 µin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Tin
Mill-Max Manufacturing Corp. 3061-0-19-01-21-14-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Gold
Mill-Max Manufacturing Corp. 3061-0-19-01-21-27-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	0.76 Ám	30 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Gold

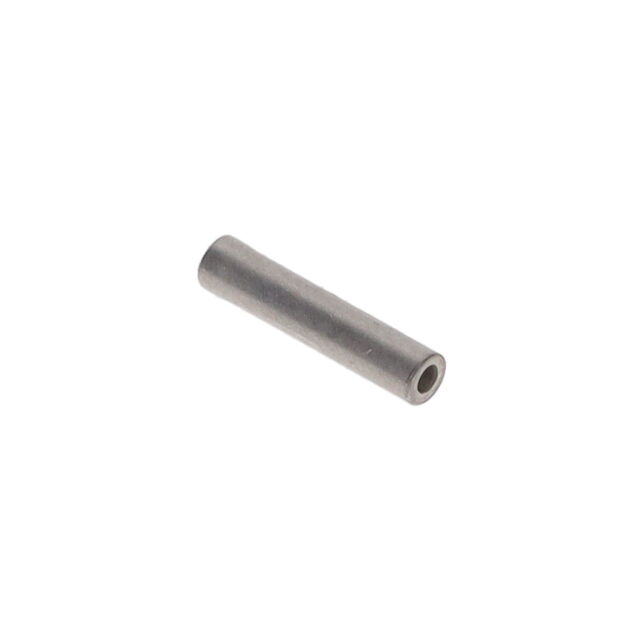

Mill-Max Manufacturing Corp. 3061-0-19-80-21-27-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	0.76 Ám	30 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Gold
Mill-Max Manufacturing Corp. 3061-0-19-15-21-14-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Gold
Mill-Max Manufacturing Corp. 3061-0-19-80-21-14-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Gold
Mill-Max Manufacturing Corp. 3061-0-19-01-21-02-10-0	-55 C	125 °C	Solder	Crimp	Beryllium Copper	0.104 in	2.64 mm	2.54 µm	100 µin	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm	4.93 mm	0.194 in	Tin-Lead
