10118901 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

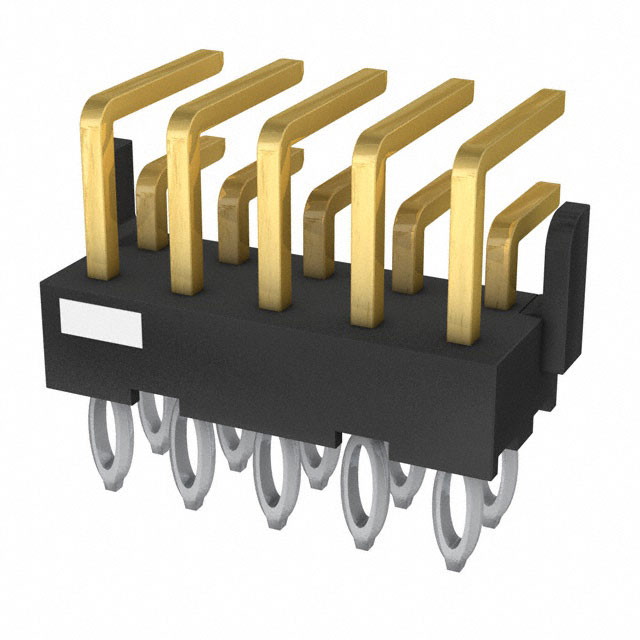

CONN HEADER R/A 10POS 2.54MM
| Part | Fastening Type | Connector Type | Insulation Material | Insulation Height | Insulation Height | Number of Rows | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Termination | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Finish - Post | Contact Finish - Mating | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Push-Pull | Header | Thermoplastic | 3.05 mm | 0.12 in | 2 | UL94 V-0 | 0.11 in | 2.79 mm | All | 3.18 mm | 0.125 in | Black | Press-Fit Solder | Square | 0.1 in | 2.54 mm | 10 | 2.54 mm | 0.1 in | Shrouded - 2 Wall | 1.27 µm | 50 µin | Through Hole Right Angle | Tin | Gold | Male Pin | Copper Alloy |
