LCCF2 Series

Catalog

CONN TERM RECT TONG 250 MCM #1/2

Part	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID	Diameter - Ring ID	Contact Finish	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Material	Wire Gauge	Wire Gauge	Terminal Style	Color	Terminal Type	Insulation	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges	Stud/Tab Size	Termination	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Width - Outer Edges	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Length - Overall	Length - Overall	Diameter - Ring ID
Panduit Corp LCCF250-12-X	1.02 in	25.91 mm	13.46 mm	0.53 in	Electro-Tin	0.7 in	17.78 mm	Copper	250 kcmil	250 kcmil	Two Stud Holes	White	Rectangular Tongue	Non-Insulated	Free Hanging (In-Line)	1.28 "	32.51 mm	0.5 Stud	Barrel Crimp	5.99 in	152.15 mm	4.32 mm	0.17 in
Panduit Corp LCCF2-56B-E	0.55 "	13.97 mm	8.64 mm	0.34 in	Electro-Tin	0.36 in	9.14 mm	Copper	2 AWG		Two Stud Holes	Brown	Rectangular Tongue	Non-Insulated	Free Hanging (In-Line)		17.78 mm	0.3125 Stud	Barrel Crimp	3.25 in	82.55 mm	2.79 mm	0.11 in	0.7 "
Panduit Corp LCCF250-38DH-X	1.02 in	25.91 mm			Electro-Tin	0.7 in	17.78 mm	Copper	250 kcmil	250 kcmil	Two Stud Holes	White	Rectangular Tongue	Non-Insulated	Free Hanging (In-Line)	1.28 "	32.51 mm	0.375 Stud	Barrel Crimp			4.32 mm	0.17 in		10.41 mm	0.41 "

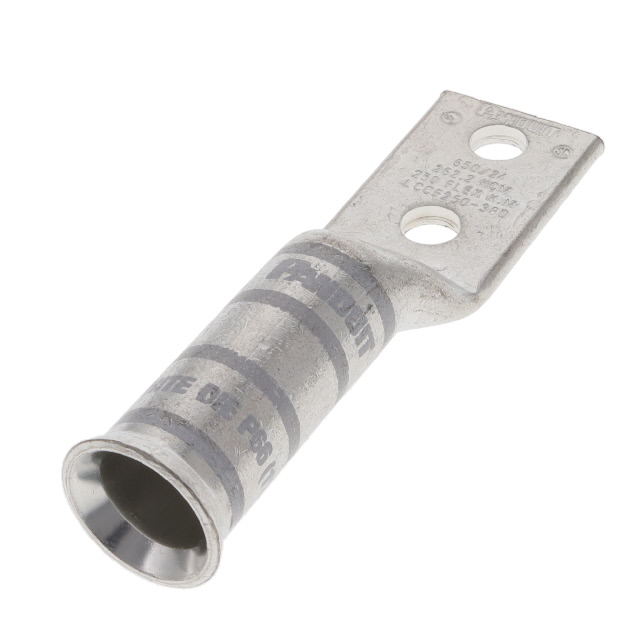

Panduit Corp LCCF250-38D-X	1.02 in	25.91 mm			Electro-Tin	0.7 in	17.78 mm	Copper	250 kcmil	250 kcmil	Two Stud Holes	White	Rectangular Tongue	Non-Insulated	Free Hanging (In-Line)	1.28 "	32.51 mm	0.375 Stud	Barrel Crimp			4.32 mm	0.17 in		10.41 mm	0.41 "	4.81 in	122.17 mm
Panduit Corp LCCF2-14AH-E	0.55 "	13.97 mm		6.86 mm	Electro-Tin	0.36 in	9.14 mm	Copper	2 AWG		Two Stud Holes	Brown	Rectangular Tongue	Non-Insulated	Free Hanging (In-Line)		17.78 mm	0.25 Stud	Barrel Crimp			2.79 mm	0.11 in	0.7 "					0.27 in
