189-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

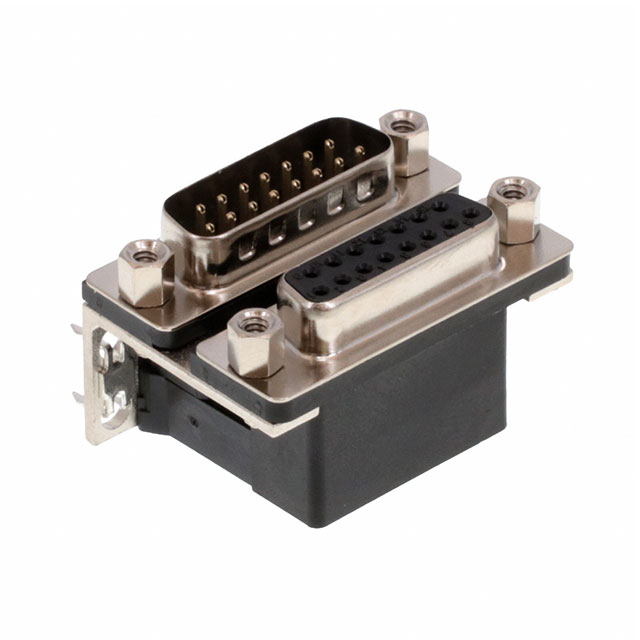

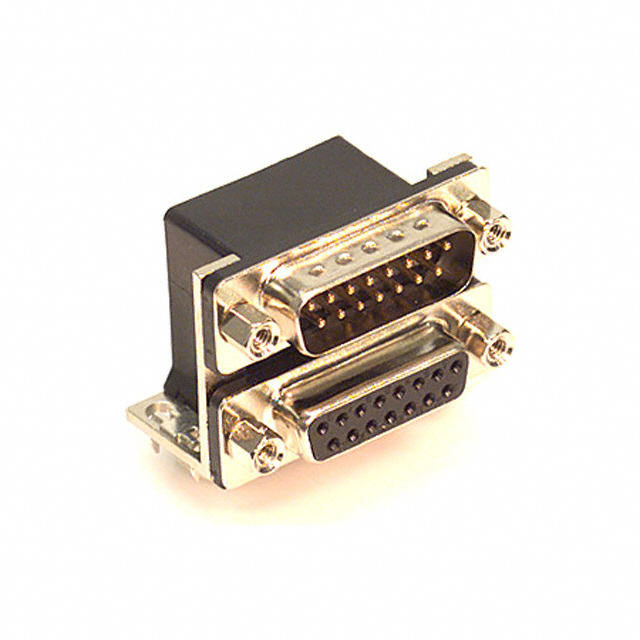

CONN D-SUB PLUG/RCPT 15P RA SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Contact Form | Dielectric Material | Features | Shell Material, Finish | Connector Style | Contact Finish | Current Rating (Amps) | Material Flammability Rating | Number of Rows [custom] | Number of Positions | Number of Positions | Contact Finish Thickness | Contact Type | Mounting Type | Flange Feature | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Backset Spacing | Backset Spacing | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | 2 | 2 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder |
 NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Board Lock Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | 2 | 2 | Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder |
 NorComp Inc. | -55 C | 105 ░C | Black | Polyester Glass Filled | Board Lock Grounding Indents | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | 2 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder | ||||
NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | 2 | Plug Male Pins | 8.08 mm | 0.318 " | Solder | |
 NorComp Inc. | -55 C | 105 ░C | Black | Polyester Glass Filled | Board Lock Grounding Indents | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | 2 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder | ||||
 NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Board Lock Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | 2 | 2 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder |
NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Board Lock Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | 2 | 2 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder |
NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | 2 | 2 | Plug Male Pins | 8.08 mm | 0.318 " | Solder |
NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Board Lock Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | 2 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Solder | |
 NorComp Inc. | -55 C | 105 ░C | Brass | Black | Stamped | Nylon 9T Polyamide (PA9T) | Board Lock Grounding Indents Shielded | Nickel Plated Steel | D-Sub - Stacked | Gold | 5 A | UL94 V-0 | 2 | 15 | 15 | Flash | Signal | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | 2 | 2 | Plug Male Pins | 8.08 mm | 0.318 " | Solder |
