90B08 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH DIP ON OFF SPST 8 RECESSED SLIDE 0.15A 30VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE TUBE
| Part | Electrical Life | Body Material | Mechanical Life | Length | Length | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Contact Finish | Actuator Level | Number of Positions | Contact Material | Height Above Board [z] | Height Above Board [z] | Mounting Type | Actuator Type | Current Rating (Amps) | Termination Style | Voltage Rating | Washable | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

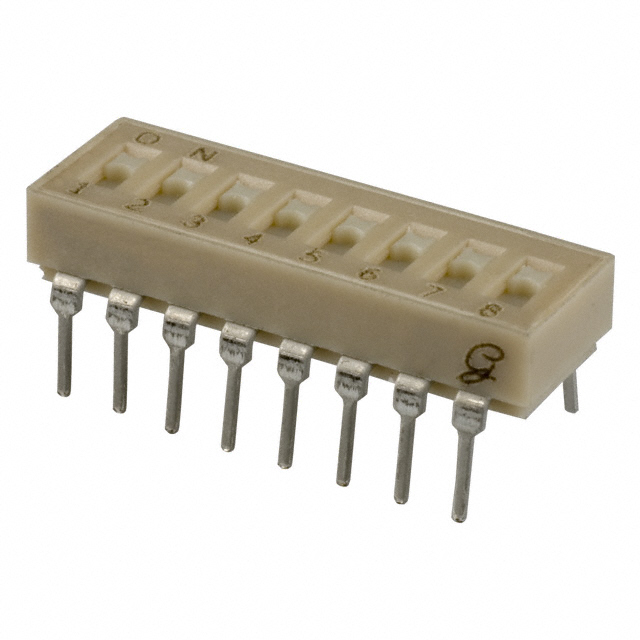

 Grayhill Inc. | 2000 Steps | Thermoplastic | 2000 Cycles | 0.87 in | 22.1 mm | 2.54 mm | 0.1 " | 85 °C | -40 C | SPST | Gold | Flush Recessed | 8 | Copper Alloy | 0.195 in | 4.95 mm | Through Hole | Slide (Standard) | 25 mA | PC Pin | 24 VDC | ||

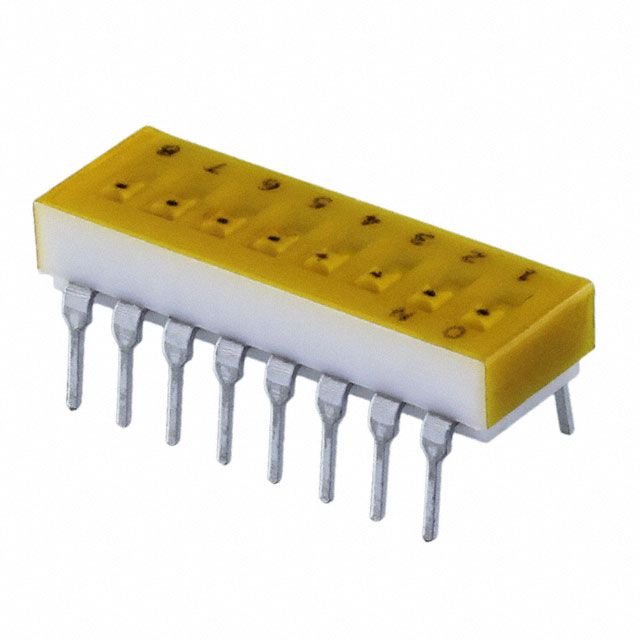

 Grayhill Inc. | 2000 Steps | Thermoplastic | 2000 Cycles | 0.87 in | 22.1 mm | 2.54 mm | 0.1 " | 85 °C | -40 C | SPST | Gold | Flush Recessed | 8 | Copper Alloy | 0.195 in | 4.95 mm | Through Hole | Slide (Standard) | 25 mA | PC Pin | 24 VDC | Position Identification Line Tape Seal | |
 Grayhill Inc. | 2000 Steps | Thermoplastic | 2000 Cycles | 0.87 in | 22.1 mm | 2.54 mm | 0.1 " | 85 °C | -40 C | SPST | Gold | Flush Recessed | 8 | Copper Alloy | 0.195 in | 4.95 mm | Through Hole | Slide (Standard) | 25 mA | PC Pin | 24 VDC | Tape Seal |
