D01-979 Series

Catalog

IC & COMPONENT SOCKET, 16 CONTACTS, PCB SOCKET, 2.54 MM, D01 SERIES

Part	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Contact Finish	Termination	Length - Overall	Length - Overall	Contact Material	Socket Depth	Socket Depth	Tail Type

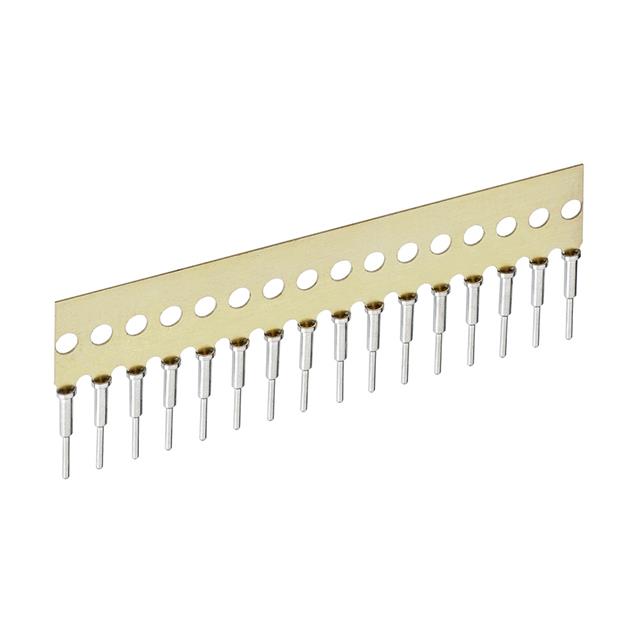

Harwin Inc. D01-9791601	6 N	2 N	100 °C	-55 C	Strip of 16	0.057 in	1.45 mm	0.59 mm	0.023 in	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	Solder	7.54 mm	0.297 "	Beryllium Copper	0.124 in	3.15 mm	Standard Tail
Harwin Inc. D01-9792001	6 N	2 N	100 °C	-55 C		0.057 in	1.45 mm	0.59 mm	0.023 in	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	Solder	7.54 mm	0.297 "	Beryllium Copper	0.124 in	3.15 mm	Standard Tail

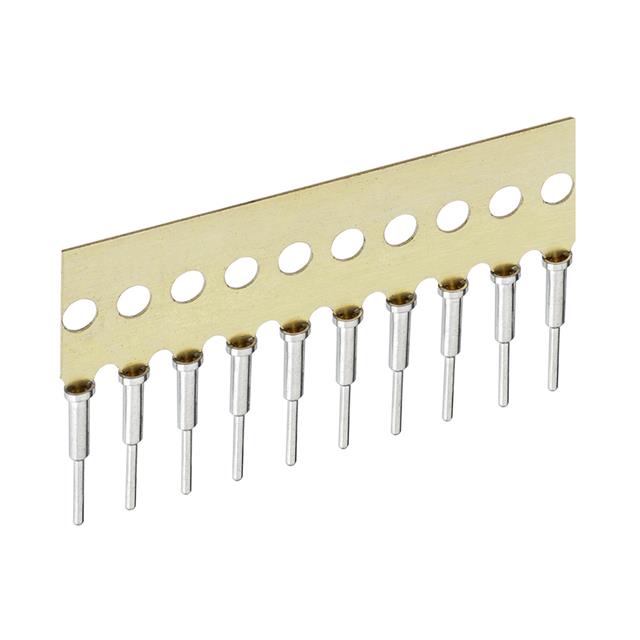

Harwin Inc. D01-9791001	6 N	2 N	100 °C	-55 C	Strip of 10	0.057 in	1.45 mm	0.59 mm	0.023 in	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	Solder	7.54 mm	0.297 "	Beryllium Copper	0.124 in	3.15 mm	Standard Tail

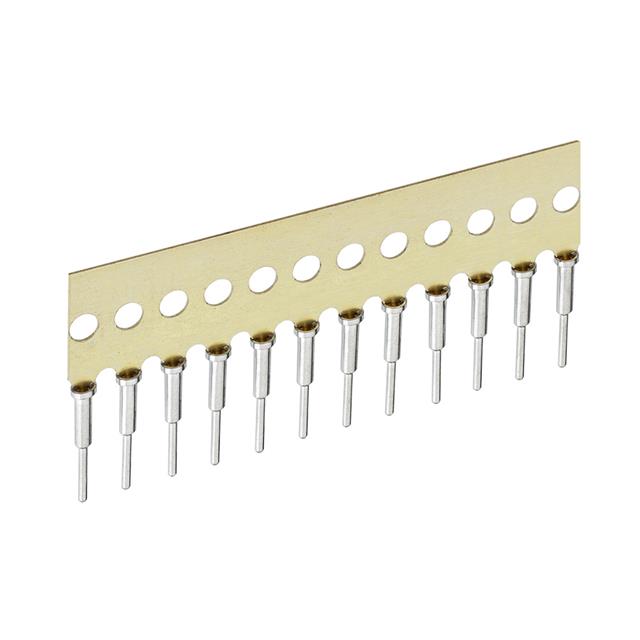

Harwin Inc. D01-9791201	6 N	2 N	100 °C	-55 C	Strip of 12	0.057 in	1.45 mm	0.59 mm	0.023 in	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	Solder	7.54 mm	0.297 "	Beryllium Copper	0.124 in	3.15 mm	Standard Tail

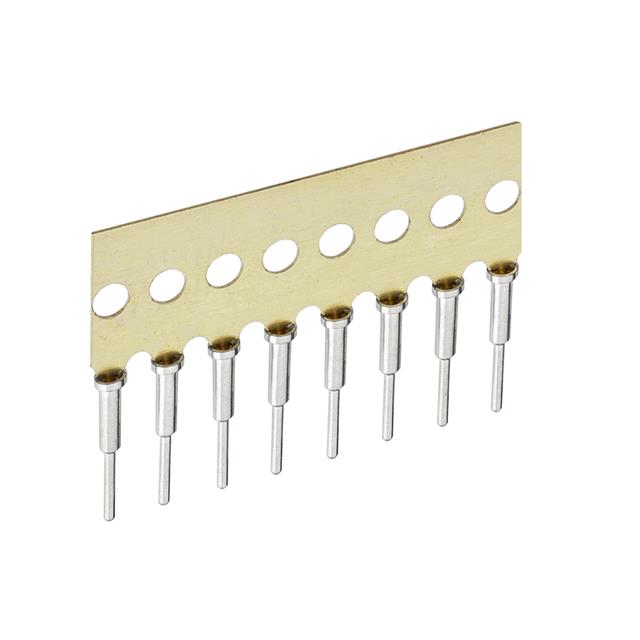

Harwin Inc. D01-9790801	6 N	2 N	100 °C	-55 C	Strip of 8	0.057 in	1.45 mm	0.59 mm	0.023 in	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	Solder	7.54 mm	0.297 "	Beryllium Copper	0.124 in	3.15 mm	Standard Tail
