M2028TJ Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Switch Function	Actuator Type	Actuator Marking	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Color - Actuator/Cap	Voltage Rating - AC	Termination Style	Features
NKK Switches M2028TJW02-FC-1A	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Concave	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	Red	125 V	Quick Connect - 0.062" (1.5mm)	Epoxy Sealed Terminals
NKK Switches M2028TJG01-GA-1A	50000 Cycles	50000 Cycles	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Paddle	No Marking	0.4 VA	CSA UL	28 V	85 °C	-30 ░C	DPDT	Black	28 V	Solder Lug	Epoxy Sealed Terminals
NKK Switches M2028TJW02-FA-1A	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Concave	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	Black	125 V	Quick Connect - 0.062" (1.5mm)	Epoxy Sealed Terminals
NKK Switches M2028TJW01-FB-1B	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Concave	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	White	125 V	Solder Lug	Epoxy Sealed Terminals

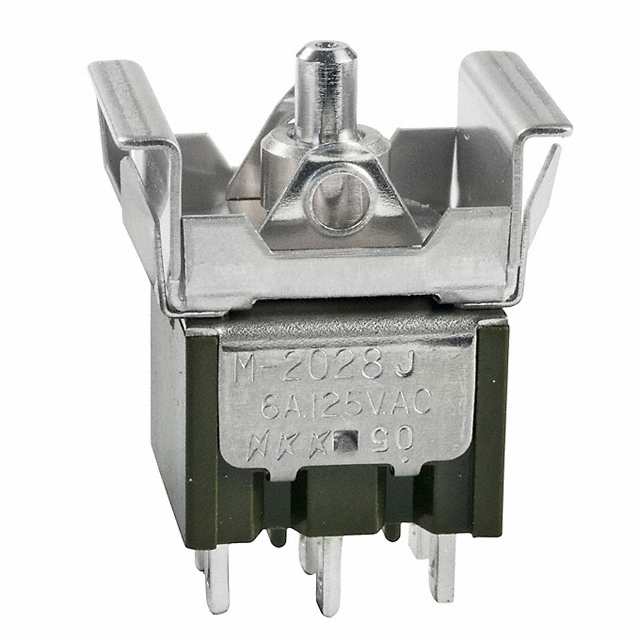

NKK Switches M2028TJW01	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Actuator Arm Cap Required	Varies by Cap	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT		125 V	Solder Lug	Epoxy Sealed Terminals
NKK Switches M2028TJW01-FC-1A	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Concave	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	Red	125 V	Solder Lug	Epoxy Sealed Terminals
NKK Switches M2028TJW01-FA-1B	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Concave	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	Black	125 V	Solder Lug	Epoxy Sealed Terminals
NKK Switches M2028TJW02-GA-1A	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Paddle	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	Black	125 V	Quick Connect - 0.062" (1.5mm)	Epoxy Sealed Terminals
NKK Switches M2028TJW01-FG-1B	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Concave	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	Blue	125 V	Solder Lug	Epoxy Sealed Terminals
NKK Switches M2028TJW01-GB	50000 Cycles	25000 Steps	15.9 mm	13.1 mm	Panel Mount Snap-In	Mom-Off-Mom	Paddle	No Marking	3 A 6 A	CSA UL	30 V	85 °C	-30 ░C	DPDT	White	125 V	Solder Lug	Epoxy Sealed Terminals
