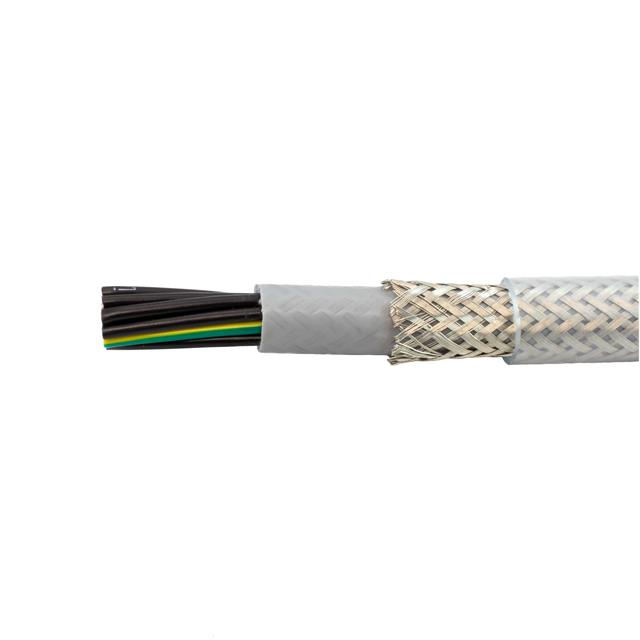

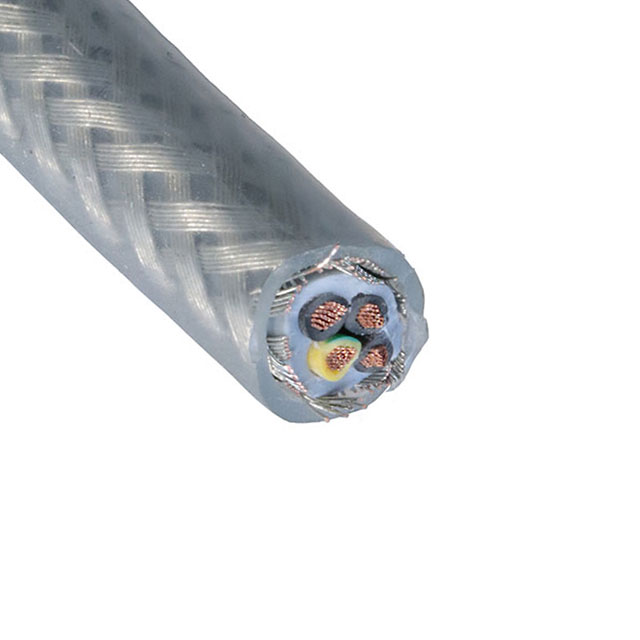

470041CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 4COND 17AWG CLEAR SHLD 30M
| Part | Length | Length | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] | Spool Size | Spool Size | Jacket Color | Features | Wire Gauge | Length | Shield Coverage | Usage | Conductor Insulation | Voltage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 1 m 10 m | 3.28 ft 32.81 ft | 4 | 0.94 mm | 0.037 in | Poly-Vinyl Chloride (PVC) | 80 °C | -40 C | Multi-Conductor | Braid | 0.0079 " | 30 | Copper Bare | 98.43 ft | 30 m | 984.3 ft | 300 m | Clear | Chemical Resistant Oil Resistant UV Resistant | 17 AWG | Enter Number of Meters in Order Quantity | 80 % | Industrial | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned |
 ALPHA WIRE | 50 m | 164 ft | 4 | 0.94 mm | 0.037 in | Poly-Vinyl Chloride (PVC) | 80 °C | -40 C | Multi-Conductor | Braid | 0.0079 " | 30 | Copper Bare | Gray | Chemical Resistant Oil Resistant UV Resistant | 17 AWG | 80 % | Industrial | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | |||||
ALPHA WIRE | 10 m | 32.81 ft | 4 | 0.94 mm | 0.037 in | Poly-Vinyl Chloride (PVC) | 80 °C | -40 C | Multi-Conductor | Braid | 0.0079 " | 30 | Copper Bare | 98.43 ft 984.3 ft | 30 m 300 m | Gray | Chemical Resistant Oil Resistant UV Resistant | 17 AWG | 80 % | Industrial | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | |||
ALPHA WIRE | 4 | 0.94 mm | 0.037 in | Poly-Vinyl Chloride (PVC) | 80 °C | -40 C | Multi-Conductor | Braid | 0.0079 " | 30 | Copper Bare | 328.1 ft | 100 m | Gray | Chemical Resistant Oil Resistant UV Resistant | 17 AWG | 80 % | Industrial | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned |
