ZIO-10 Series
Manufacturer: Smart Prototyping
Beta
⌘K
ZIO QWIIC HUB BOARD
| Part | Board Thickness | Board Thickness | Board Thickness | Material | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Proto Board Type | Package Accepted | Number of Positions | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

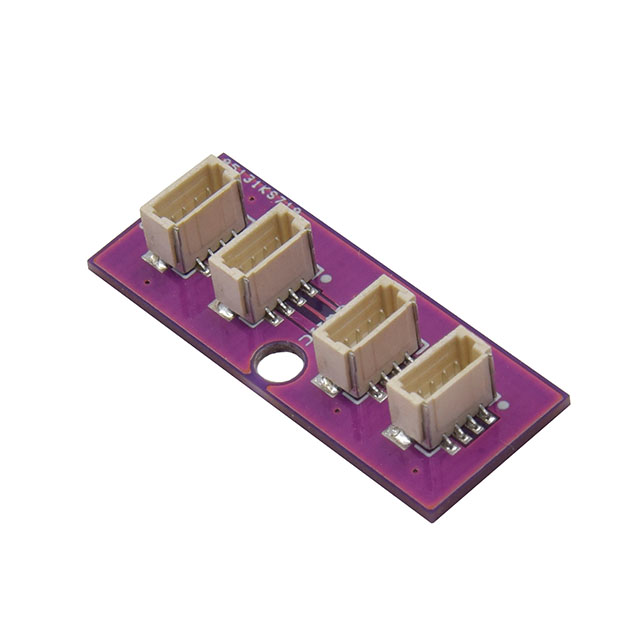

 Smart Prototyping | 1.57 mm | 0.062 " | 0.0625 in | FR4 Epoxy Glass | 30.1 mm | 1.18 " | 12 mm | 0.47 " | Qwiic Connectors | ||||

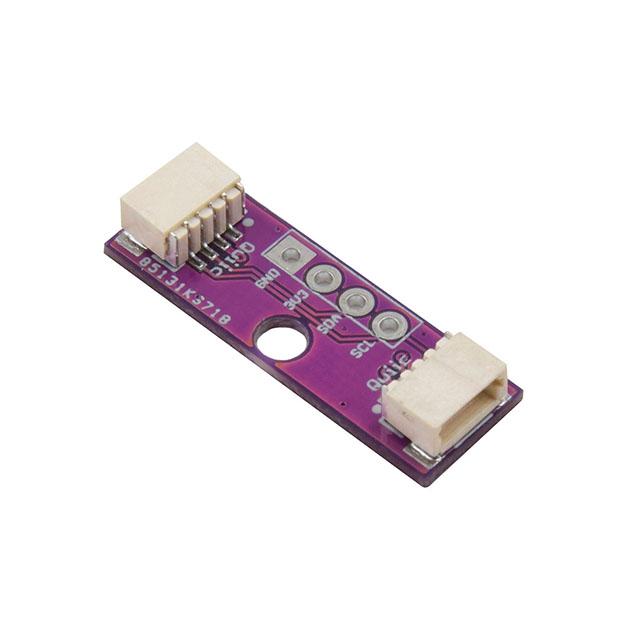

 Smart Prototyping | 1.57 mm | 0.062 " | 0.0625 in | FR4 Epoxy Glass | 25.4 mm | 1 in | 8.6 mm | 0.34 in | Connector to DIP | 2.54mm Header | 4 | 0.1 " | 2.54 mm |
