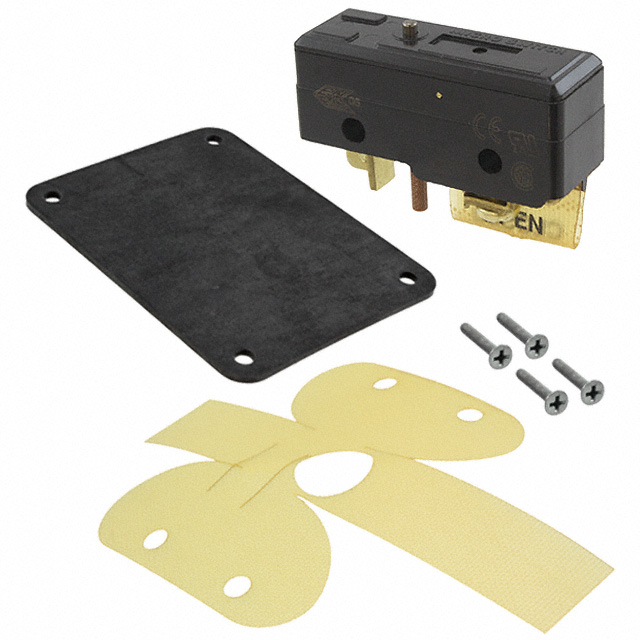

BA-3RX Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 20A 125V
| Part | Voltage Rating - DC | Termination Style | Switch Function | Actuator Type | Mechanical Life | Current Rating (Amps) | Circuit | Voltage Rating - AC | Pretravel | Pretravel | Overtravel | Overtravel | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force [Min] | Operating Force [Max] | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 125 VDC | Screw Terminal | On-On | Round (Pin Plunger) | 20000000 Cycles | 20 A 500 mA | SPDT | 125 V | 0.65 mm | 0.025 in | 0.1 in | 2.54 mm | Chassis Mount | 85 °C | -55 °C | 141 gf | 283 gf | 16.9 mm | 0.665 in |
