EEF-HE Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

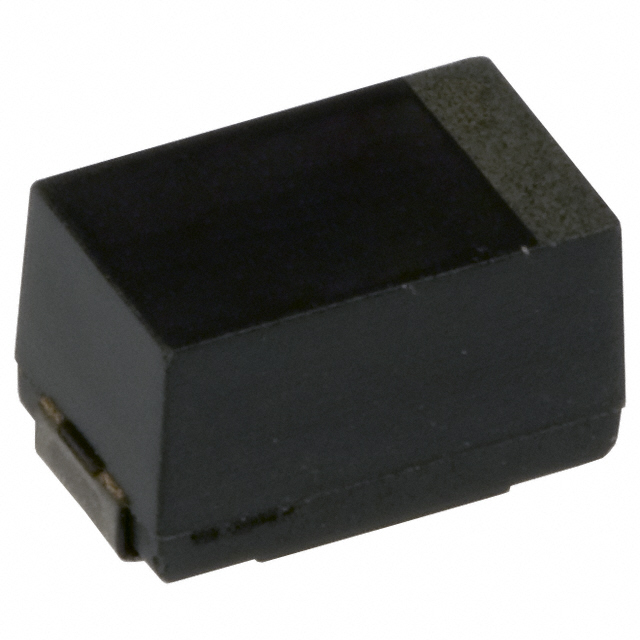

CAP ALUM POLY 330UF 20% 2V SMD
| Part | Package / Case | Package / Case | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Ripple Current @ High Frequency | Voltage - Rated | Type | Mounting Type | ESR (Equivalent Series Resistance) | Capacitance | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 7343 Metric | 2917 | General Purpose | 125 °C | -40 °C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 3 A | 2 VDC | Polymer | Surface Mount | 12 mOhms | 330 µF | 20 % | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.169 " | 4.3 mm | |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | General Purpose | 125 °C | -40 °C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 3 A | 2.5 V | Polymer | Surface Mount | 12 mOhms | 220 µF | 20 % | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.169 " | 4.3 mm | |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | General Purpose | 125 °C | -40 °C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 3 A | 2.5 V | Polymer | Surface Mount | 12 mOhms | 270 µF | 20 % | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.169 " | 4.3 mm | |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | General Purpose | 125 °C | -40 °C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 3 A | 4 V | Polymer | Surface Mount | 12 mOhms | 180 çF | 20 % | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.169 " | 4.3 mm | |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | General Purpose | 125 °C | -40 °C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 3 A | 6.3 V | Polymer | Surface Mount | 12 mOhms | 150 µF | 20 % | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.169 " | 4.3 mm | 1000 Hrs |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | General Purpose | 125 °C | -40 °C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 3 A | 4 V | Polymer | Surface Mount | 12 mOhms | 180 çF | 20 % | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.169 " | 4.3 mm | 1000 Hrs |
