JWM22R Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPDT 10A 125V
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Features | Current Rating (Amps) | Circuit | Approval Agency | Actuator Type | Actuator Marking | Ingress Protection | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | 15.4 mm | 24 mm | On-On | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Epoxy Sealed Terminals | 10 A | DPDT | CSA UL VDE | Concave (Curved) | No Marking | Dust Proof | |

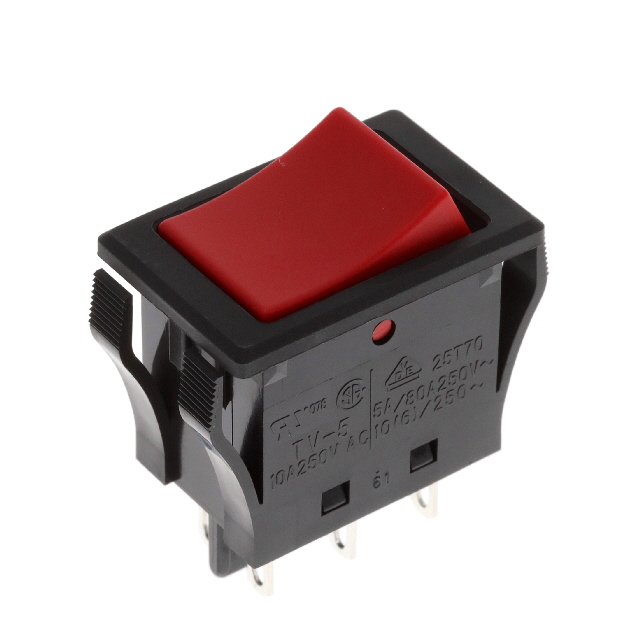

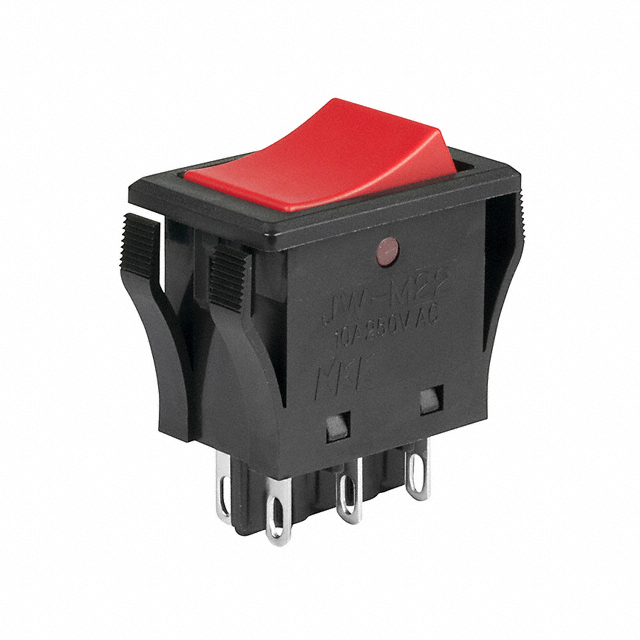

 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | 15.4 mm | 24 mm | On-On | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Epoxy Sealed Terminals | 10 A | DPDT | CSA UL VDE | Concave (Curved) | No Marking | Dust Proof | Red |

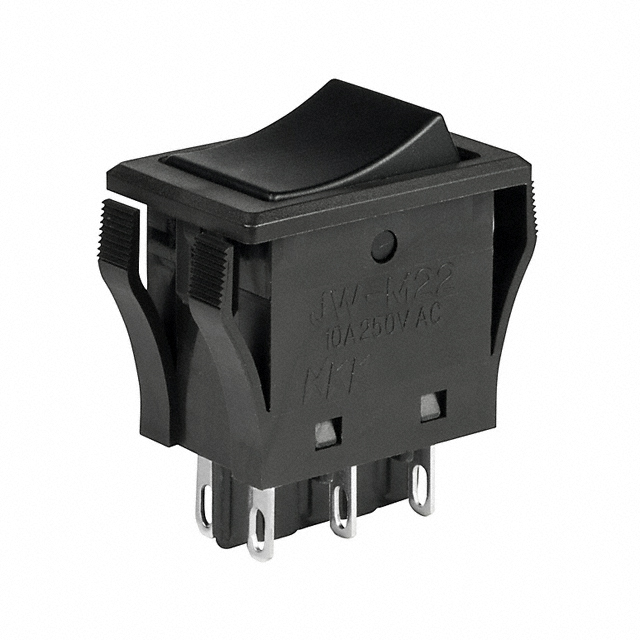

 NKK Switches | 25000 Steps | 25000 Steps | 250 V | Panel Mount Snap-In | 15.4 mm | 24 mm | On-On | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Epoxy Sealed Terminals | 10 A | DPDT | CSA UL VDE | Concave (Curved) | No Marking | Dust Proof | Black |
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | 15.4 mm | 24 mm | On-On | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Epoxy Sealed Terminals | 10 A | DPDT | CSA UL VDE | Concave (Curved) | No Marking | Dust Proof | Black |
