745-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 52POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Read Out	Pitch	Pitch	Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Finish	Gender	Card Type	Number of Positions	Mounting Type	Termination Rows	Number of Rows
EDAC Inc. 745-052-520-201	Polyester Thermoplastic	2	Copper Alloy	26	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám	2	Gold	Female	Non Specified - Dual Edge	52	Through Hole
EDAC Inc. 745-052-545-206	Polyester Thermoplastic	2	Copper Alloy	26	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám	2	Gold	Female	Non Specified - Dual Edge	52	Through Hole

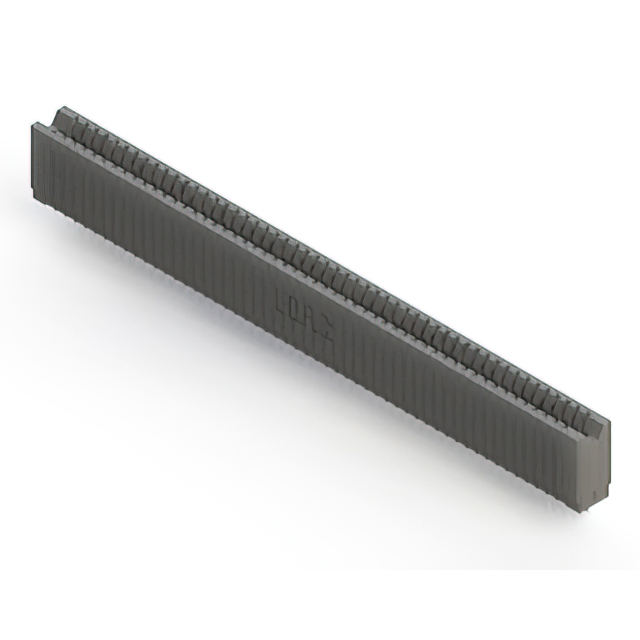

EDAC Inc. 745-052-520-106	Polyester Thermoplastic		Copper Alloy	52	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Single	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám		Gold	Female	Non Specified - Single Edge	52	Through Hole	1	1
EDAC Inc. 745-052-520-101	Polyester Thermoplastic		Copper Alloy	52	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Single	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám		Gold	Female	Non Specified - Single Edge	52	Through Hole	1	1
EDAC Inc. 745-052-540-101	Polyester Thermoplastic		Copper Alloy	52	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Single	0.1 "	2.54 mm	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám		Gold	Female	Non Specified - Single Edge	52	Through Hole	1	1
EDAC Inc. 745-052-540-206	Polyester Thermoplastic	2	Copper Alloy	26	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	0.1 "	2.54 mm	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	2	Gold	Female	Non Specified - Dual Edge	52	Through Hole
EDAC Inc. 745-052-522-206	Polyester Thermoplastic	2	Copper Alloy	26	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám	2	Gold	Female	Non Specified - Dual Edge	52	Through Hole
EDAC Inc. 745-052-522-101	Polyester Thermoplastic		Copper Alloy	52	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Single	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám		Gold	Female	Non Specified - Single Edge	52	Through Hole	1	1

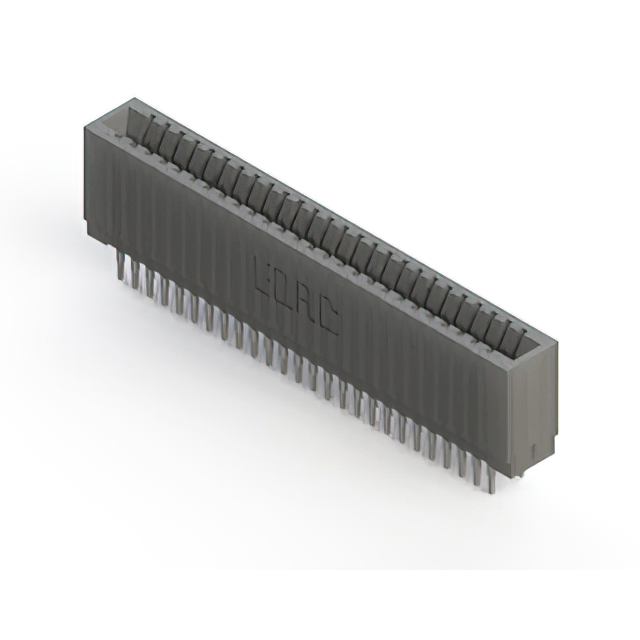

EDAC Inc. 745-052-522-201	Polyester Thermoplastic	2	Copper Alloy	26	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám	2	Gold	Female	Non Specified - Dual Edge	52	Through Hole

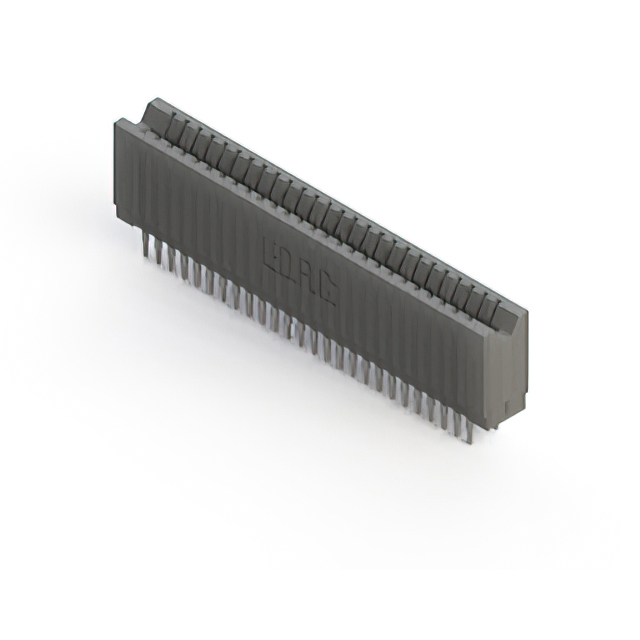

EDAC Inc. 745-052-541-206	Polyester Thermoplastic	2	Copper Alloy	26	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Dual	0.1 "	2.54 mm	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	2	Gold	Female	Non Specified - Dual Edge	52	Through Hole
