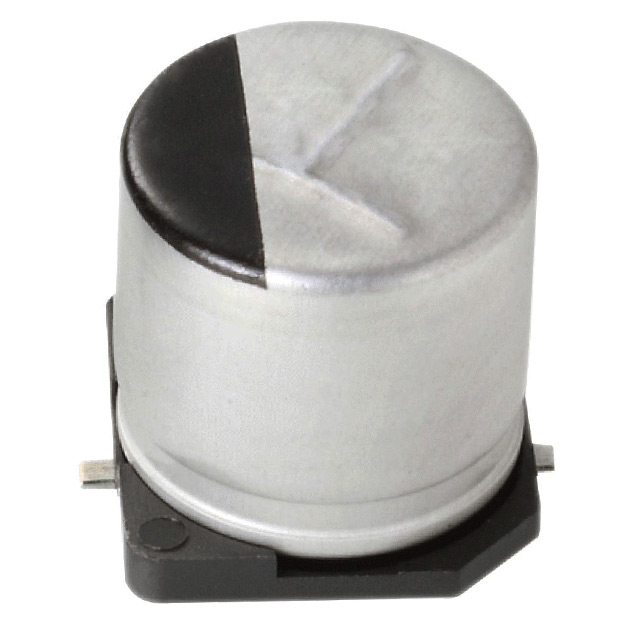

EEE-FT Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 1500UF 20% 10V SMD

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Mounting Type	Ratings	Tolerance	Ripple Current @ Low Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Ripple Current @ High Frequency	Voltage - Rated	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

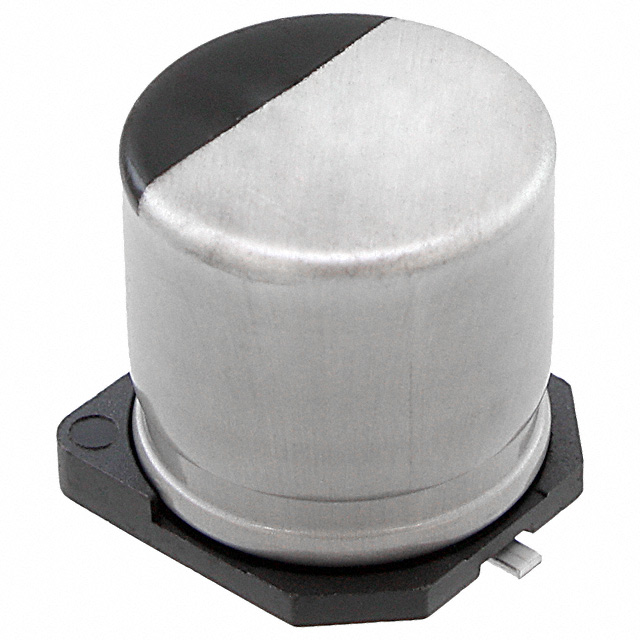

Panasonic Industrial Automation Sales EEE-FT1A152GV	Automotive High Temperature Reflow	105 ░C	-55 °C	60 mOhm	Surface Mount	AEC-Q200	20 %	833 mA	10.3 mm	0.406 in	10.3 mm	0.406 "	5000 Hrs	1.19 A	10 V	1.5 mF	10 mm	0.394 in	0.425 in	10.8 mm	Polar	Radial Can - SMD

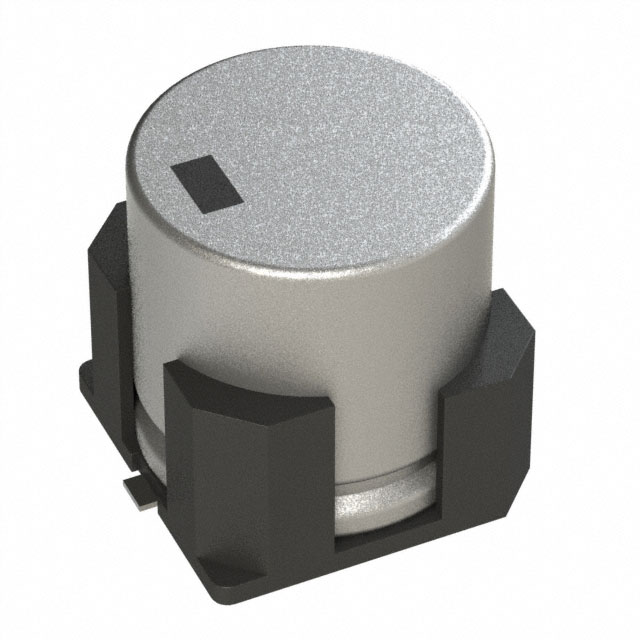

Panasonic Industrial Automation Sales EEE-FT1E821GP	Automotive	105 ░C	-55 °C	60 mOhm	Surface Mount	AEC-Q200	20 %	833 mA	10.3 mm	0.406 in	10.3 mm	0.406 "	5000 Hrs	1.19 A	25 VDC	820 µF	10 mm	0.394 in	0.413 in	10.5 mm	Polar	Radial Can - SMD

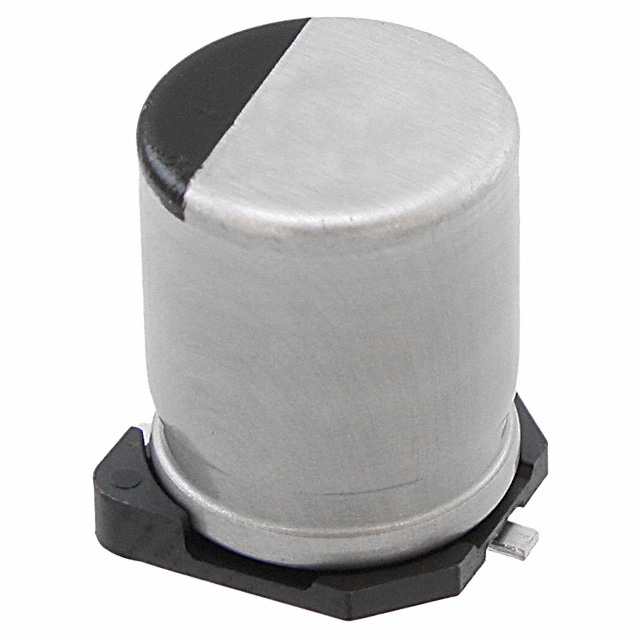

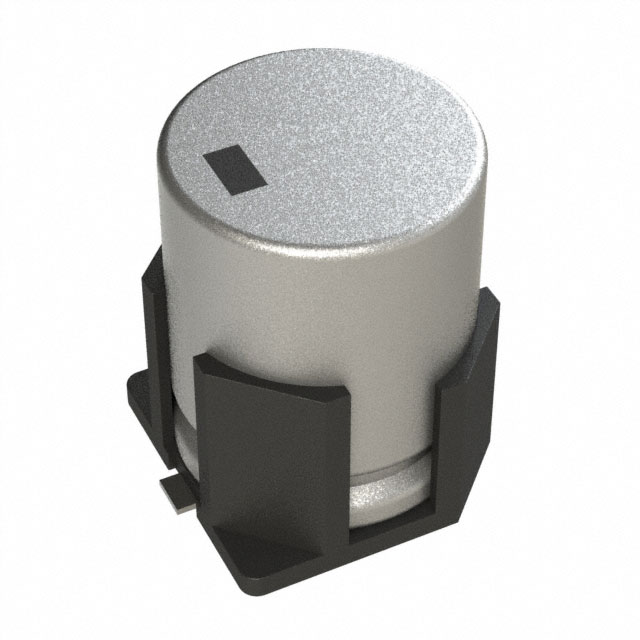

Panasonic Industrial Automation Sales EEE-FT1C681GV	Automotive High Temperature Reflow	105 ░C	-55 °C	80 mOhm	Surface Mount	AEC-Q200	20 %	595 mA	8.3 mm	0.327 "	8.3 mm	0.327 in	5000 Hrs	850 mA	16 V	680 µF	8 mm	0.315 "	0.425 in	10.8 mm	Polar	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FT0J152AP	Automotive	105 ░C	-55 °C	80 mOhm	Surface Mount	AEC-Q200	20 %	595 mA	8.3 mm	0.327 "	8.3 mm	0.327 in	2000 Hrs	850 mA	6.3 V	1.5 mF	8 mm	0.315 "	0.413 in	10.5 mm	Polar	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FT1V681UP	Automotive High Temperature Reflow	105 ░C	-55 °C	60 mOhm	Surface Mount	AEC-Q200	20 %	833 mA	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	1.19 A	35 V	680 µF	10 mm	0.394 in	0.413 in	10.5 mm	Polar	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FT1C122UP	Automotive High Temperature Reflow	105 ░C	-55 °C	60 mOhm	Surface Mount	AEC-Q200	20 %	833 mA	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	1.19 A	16 V	1.2 mF	10 mm	0.394 in	0.413 in	10.5 mm	Polar	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FT1V331AL	Automotive	105 ░C	-55 °C	80 mOhm	Surface Mount	AEC-Q200	20 %	552.5 mA	8.3 mm	0.327 "	8.3 mm	0.327 in	2000 Hrs	850 mA	35 V	330 µF	8 mm	0.315 "	0.413 in	10.5 mm	Polar	Radial Can - SMD

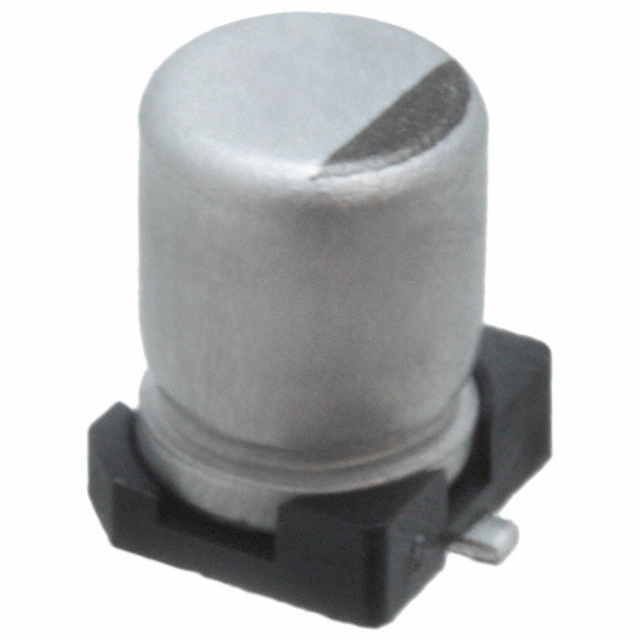

Panasonic Industrial Automation Sales EEE-FT0J221AR	Automotive	105 ░C	-55 °C	360 mOhm	Surface Mount	AEC-Q200	20 %	156 mA	5.3 mm	0.209 in	5.3 mm	0.209 in	2000 Hrs	240 mA	6.3 V	220 µF	5 mm	0.197 "			Polar	Radial Can - SMD	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEE-FT0J331AL	Automotive	105 ░C	-55 °C	260 mOhm	Surface Mount	AEC-Q200	20 %		6.6 mm	0.26 in	6.6 mm	0.26 in	2000 Hrs	300 mA	6.3 V	330 µF	6.3 mm	0.248 in			Polar	Radial Can - SMD	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEE-FT1C122UL	Automotive	105 ░C	-55 °C	60 mOhm	Surface Mount	AEC-Q200	20 %	833 mA	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	1.19 A	16 V	1.2 mF	10 mm	0.394 in	0.413 in	10.5 mm	Polar	Radial Can - SMD
