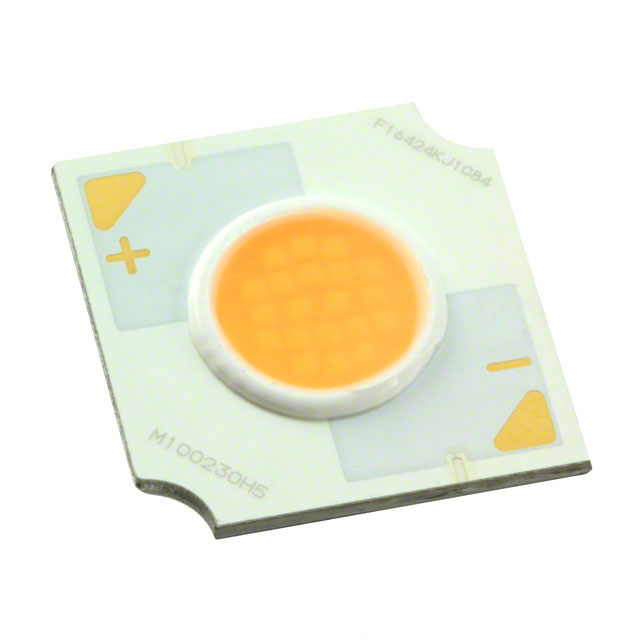

CLU701 Series

Catalog

LED COB CLU701 WM WHT SQ 2700K

Part	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Color	Current - Max [Max]	Type	Lens Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Temperature - Test	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Current - Test	Configuration
Citizen Finedevice Co Ltd CLU701-0303C4-273H5K2	480 lm	6 mm	Warm White	690 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	2700 K	85 °C	90	97 lm/W	525 mA	Square
Citizen Finedevice Co Ltd CLU701-1002C4-503M2K1	1305 lm	6 mm	Cool White	460 mA	Chip On Board (COB)	Flat	31.3 V	13.5 mm	13.5 mm	5000 K	85 °C	80	119 lm/W	350 mA	Square
Citizen Finedevice Co Ltd CLU701-0304C4-273H5K2	640 lm	6 mm	Warm White	920 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	2700 K	85 °C	90	97 lm/W		Square
Citizen Finedevice Co Ltd CLU701-0303C4-403M2K1	625 lm	6 mm	Neutral White	690 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	4000 K	85 °C	80	127 lm/W	525 mA	Square
Citizen Finedevice Co Ltd CLU701-0303C4-403H5K2	516 lm	6 mm	Neutral White	690 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	4000 K	85 °C	90	105 lm/W	525 mA	Square
Citizen Finedevice Co Ltd CLU701-0304C4-353M2K1	824 lm	6 mm	Warm White	920 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	3500 K	85 °C	80	125 lm/W		Square
Citizen Finedevice Co Ltd CLU701-1002C4-273H5K2	962 lm	6 mm	Warm White	460 mA	Chip On Board (COB)	Flat	31.3 V	13.5 mm	13.5 mm	2700 K	85 °C	90	88 lm/W	350 mA	Square
Citizen Finedevice Co Ltd CLU701-1002C4-303M2K1	1224 lm	6 mm	Warm White	460 mA	Chip On Board (COB)	Flat	31.3 V	13.5 mm	13.5 mm	3000 K	85 °C	80	112 lm/W	350 mA	Square
Citizen Finedevice Co Ltd CLU701-0303C4-353H5K2	511 lm	6 mm	Warm White	690 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	3500 K	85 °C	90	104 lm/W	525 mA	Square
Citizen Finedevice Co Ltd CLU701-0304C4-273M2K1	775 lm	6 mm	Warm White	920 mA	Chip On Board (COB)	Flat	9.4 V	13.5 mm	13.5 mm	2700 K	85 °C	80	118 lm/W		Square
