832 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

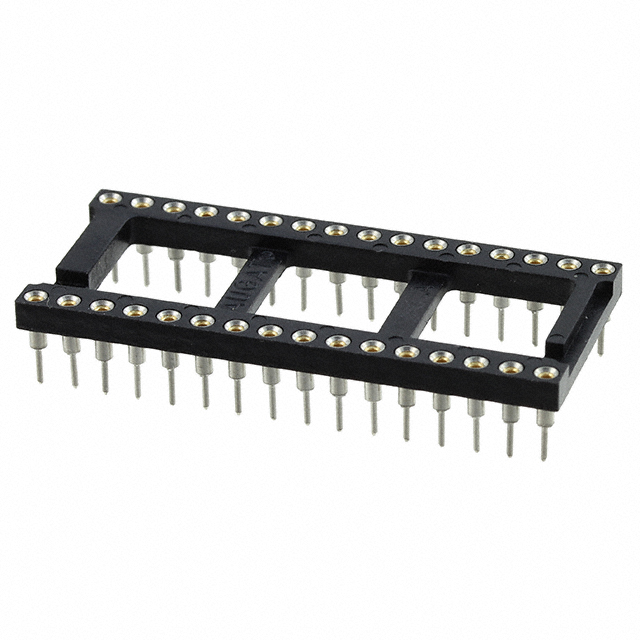

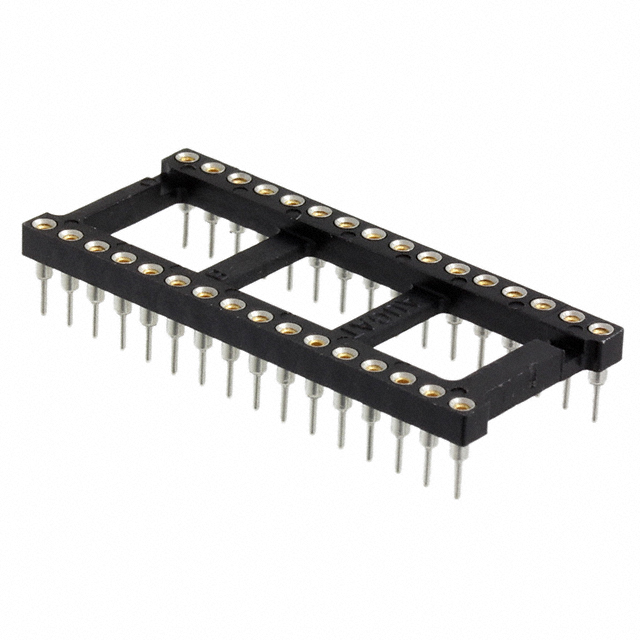

CONN IC DIP SOCKET 32POS GOLD
| Part | Current Rating (Amps) | Contact Resistance | Termination Post Length | Termination Post Length | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Type [custom] | Type [custom] | Type | Contact Finish - Mating | Mounting Type | Contact Material - Post [custom] | Features | Termination | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) | Pitch - Post | Pitch - Post | Housing Material | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Output Type | Package / Case | Supplier Device Package | Acceleration Range | Voltage - Supply [Max] | Voltage - Supply [Min] | Axis [z] | Axis [y] | Axis [x] | Sensitivity (mV/g) | Bandwidth | Acceleration Range [Max] | Acceleration Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3 A | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | -55 C | 105 ░C | Copper Alloy | 15.24 mm | 0.6 in | DIP | Gold | Through Hole | Copper Alloy | Open Frame | Solder | 0.1 " | 2.54 mm | Flash | 32 | 0.1 in | 2.54 mm | Polyester | Tin-Lead | |||||||||||||||
 TE Connectivity AMP Connectors | 3 A | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | -55 C | 105 ░C | Copper Alloy | 15.24 mm | 0.6 in | DIP | Gold | Through Hole | Copper Alloy | Open Frame | Solder | 0.1 " | 2.54 mm | 32 | 0.1 in | 2.54 mm | Polyester | Tin-Lead | 5 µin | 0.127 µm | ||||||||||||||
 TE Connectivity AMP Connectors | -20 ░C | 80 °C | Analog | Surface Mount | IEPE | 5-SMD No Lead | SMD | 100 g | 5.5 V | 3.3 V | Z | Y | X | 12.5 mV/g | 2 kHz | ||||||||||||||||||||||||
TE Connectivity AMP Connectors | -20 ░C | 80 °C | Analog | Surface Mount | IEPE | 5-SMD No Lead | SMD | 5.5 V | 3.3 V | Z | Y | X | 50 mV/g | 2 kHz | 25 g | -25 g | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | 3 A | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | -55 C | 105 ░C | Copper Alloy | 15.24 mm | 0.6 in | DIP | Gold | Through Hole | Open Frame | Solder | 0.1 " | 2.54 mm | 32 | 0.1 in | 2.54 mm | Polyester | ||||||||||||||||||
TE Connectivity AMP Connectors | -20 ░C | 80 °C | Analog | Surface Mount | IEPE | 5-SMD No Lead | SMD | 5.5 V | 3.3 V | Z | Y | X | 2.5 mV/g | 2 kHz | 500 g | -500 g |
