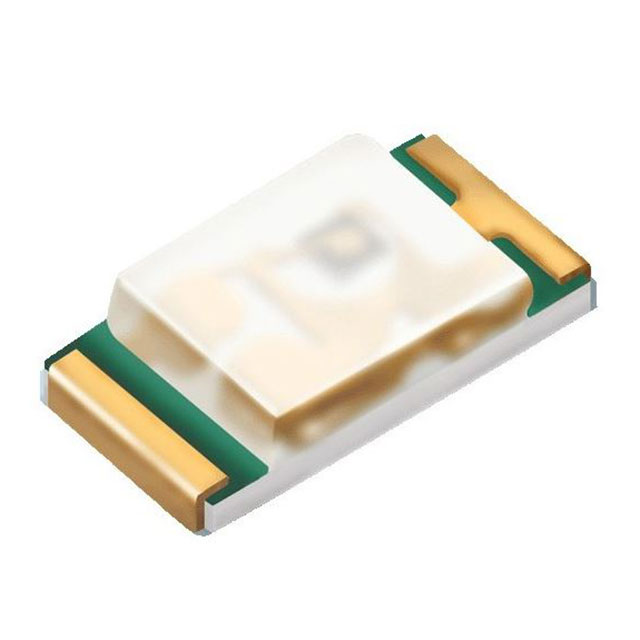

EAST16084 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

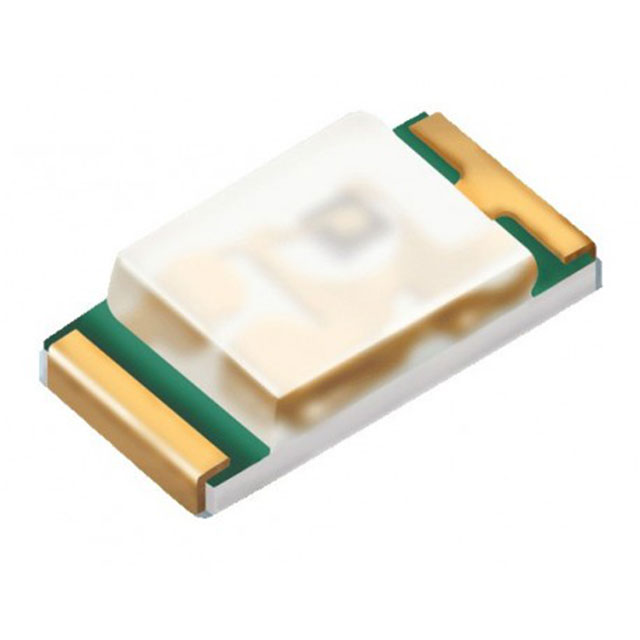

LED UNI-COLOR WHITE 2-PIN CHIP 0603(1608METRIC) T/R

Part	Configuration	Lens Style	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Lens Color	Voltage - Forward (Vf) (Typ)	Color	Viewing Angle	Height (Max) [z]	Lens Transparency	Lens Size [x]	Lens Size [y]	Current - Test	Package / Case	Package / Case	Millicandela Rating	Wavelength - Dominant	Wavelength - Peak
Everlight Electronics Co Ltd EAST16084WB0	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Yellow	2.8 V	White	130 °	0.5 mm	Diffused	1 mm	0.8 mm	5 mA	1608 Metric	0603
Everlight Electronics Co Ltd EAST16084YA1	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	2.05 V	Yellow	120 °	0.5 mm	Clear	1 mm	0.8 mm	20 mA	1608 Metric	0603	79 mcd	590 nm	591 nm
Everlight Electronics Co Ltd EAST16084BA8	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	2.8 V	Blue	120 °	0.5 mm	Clear	1 mm	0.8 mm	5 mA	1608 Metric	0603			468 nm
Everlight Electronics Co Ltd EAST16084WA4	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Yellow	3 V	White	130 °	0.5 mm	Diffused	1 mm	0.8 mm	5 mA	1608 Metric	0603	126 mcd
Everlight Electronics Co Ltd EAST16084AA0	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	2 V		120 °	0.5 mm	Clear	1.6 mm	0.8 mm	5 mA	1608 Metric	0603	20 mcd	607 nm	611 nm
Everlight Electronics Co Ltd EAST16084RA0	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	2 V	Red	120 °	0.5 mm	Clear	1 mm	0.8 mm	20 mA	1608 Metric	0603	79 mcd	624 nm	632 nm
Everlight Electronics Co Ltd EAST16084BA1	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	3.2 V	Blue	120 °	0.5 mm	Clear	1 mm	0.8 mm	20 mA	1608 Metric	0603	70 mcd	471 nm	468 nm
Everlight Electronics Co Ltd EAST16084GA1		Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	3.3 V	Green	120 °	0.5 mm	Clear	1 mm	0.8 mm	20 mA	1608 Metric	0603	198.5 mcd	527.5 nm	518 nm
Everlight Electronics Co Ltd EAST16084OA0	Standard	Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Colorless	2 V		120 °	0.5 mm	Clear	1 mm	0.8 mm	5 mA	1608 Metric	0603	25 mcd	616 nm	621 nm
Everlight Electronics Co Ltd EAST16084WA1		Rectangle with Flat Top	Surface Mount	1.6 mm	0.8 mm	2-SMD	Yellow	2.925 V	White	130 °	0.5 mm	Diffused	1 mm	0.8 mm	5 mA	1608 Metric	0603	126 mcd
