BD9G101 Series

Catalog

EVAL BOARD FOR BD9G101

Part	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Frequency - Switching	Utilized IC / Part	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Voltage - Output	Current - Output	Main Purpose	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max) [Max]	Output Configuration	Voltage - Input (Max) [Max]	Package / Case	Topology	Mounting Type	Synchronous Rectifier	Function	Number of Outputs	Output Type

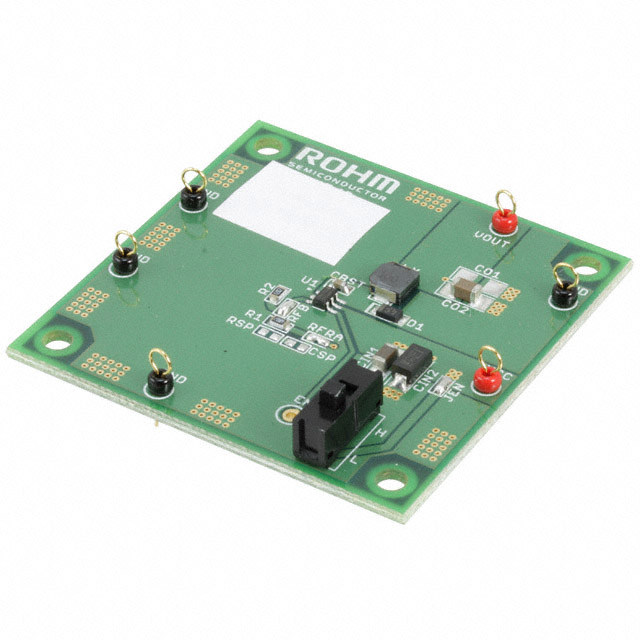

Rohm Semiconductor BD9G101G-EVK-101	Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	1.5 MHz	BD9G101	Board(s)	6 V	42 V	Buck	5 V	500 mA	DC/DC Step Down

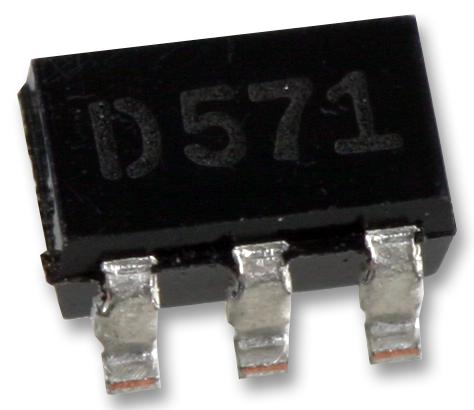

Rohm Semiconductor BD9G101G-TR					1.5 MHz							500 mA		6-SSOP	6 V	1 V	-40 °C	105 °C	29.4 V	Positive	42 V	SOT-23-6	Buck	Surface Mount		Step-Down	1	Adjustable
