TR9CZ1263 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

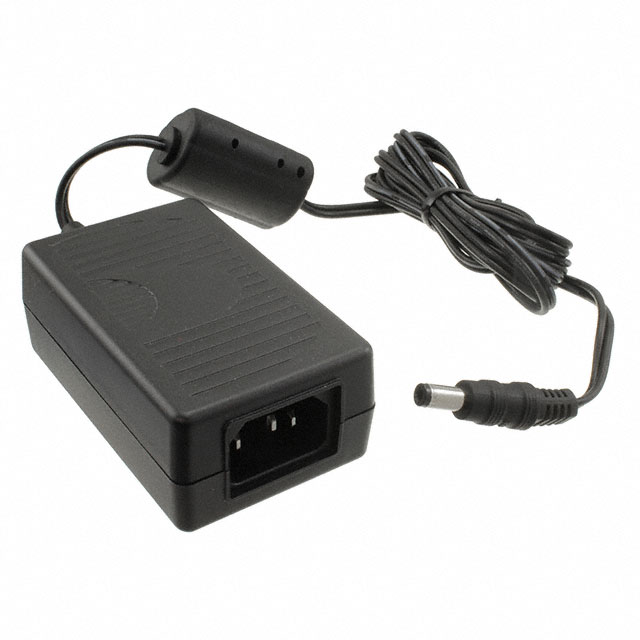

AC/DC DESKTOP ADAPTER 19V 24W
| Part | Region Utilized | Applications | Input Type | Polarization | Standard Number | Form | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Current - Output (Max) [Max] | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | No Load Power Consumption | Output Connector [diameter] | Output Connector | Output Connector [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Approval Agency | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | International | ITE (Commercial) | Cord (Sold Separately) | Positive Center | 60950-1 | Desktop (Class I) | 19 V | 264 VAC | 90 VAC | Level VI | 1.26 A | IEC 320-C14 | 40 °C | 0 °C | 75 mW | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 31 mm | 1.97 in | 80.6 mm | 50 mm | 1.22 in | 3.17 in | 24 W | CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI | 60.2 in | 1.53 m |
