2271116 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

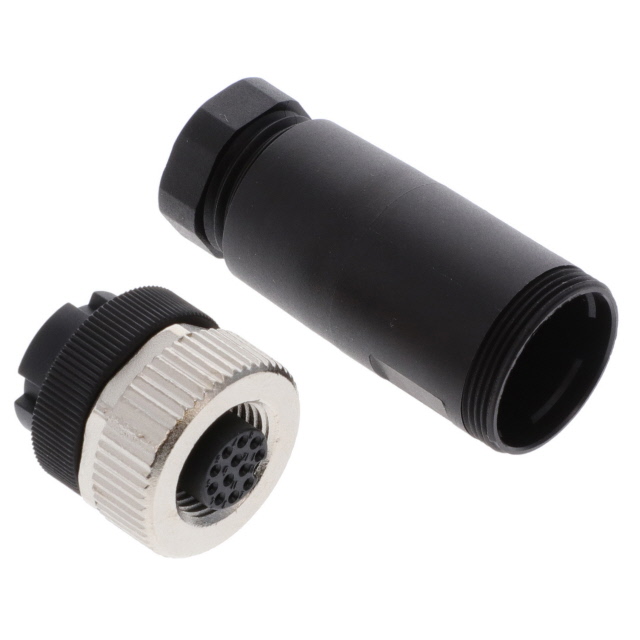

M12, FEMALE, A CODE, 12P, PG9 (A
| Part | Contact Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Color | Shell Size - Insert | Current Rating (Amps) | Termination | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Ingress Protection | Orientation | Voltage Rating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Connector Type | Number of Positions | Features | Backshell Material, Plating | Applications | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | Free Hanging (In-Line) | 0.5 µm | 19.7 µin | Gold | Black Silver | M12-12 | 2 A | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | IP67 - Dust Tight Waterproof | A | 30 VAC | Unshielded | 85 °C | -40 °C | Plastic | Female Sockets Plug | 12 | Backshell Coupling Nut | Nylon Polyamide (PA) | Industrial Automation | Nylon Polyamide (PA) |
TE Connectivity Raychem Cable Protection |
