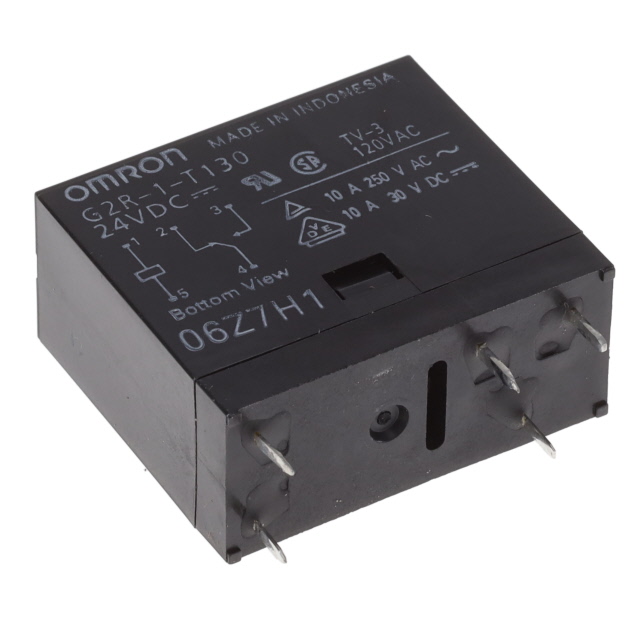

G2R-1-T Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 24V
| Part | Contact Material | Release Time | Must Operate Voltage | Operate Time | Seal Rating | Load - Max Switching | Coil Type | Mounting Type | Coil Voltage | Relay Type | Must Release Voltage | Approval Agency | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Form | Coil Current | Contact Rating (Current) | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Silver Alloy | 5 ms | 16.8 VDC | 15 ms | Sealed - Flux Protection | 1250 W 3800 VA | Non Latching | Through Hole | 24 VDC | General Purpose | 3.6 VDC | CSA TUV UR VDE | 125 VDC 380 VAC | -40 °C | 70 °C | PC Pin | SPDT (1 Form C) | 21.8 mA | 10 A | |
 Omron Electronics Inc-EMC Div | Silver Alloy | 5 ms | 8.4 VDC | 15 ms | Sealed - Flux Protection | 1250 W 3800 VA | Non Latching | Chassis Mount | 12 VDC | General Purpose | 1.8 VDC | CSA TUV UR VDE | 125 VDC 380 VAC | -40 °C | 70 °C | Quick Connect - 0.187" (4.7mm) | SPDT (1 Form C) | 43.6 mA | 10 A | 275 Ohms |
