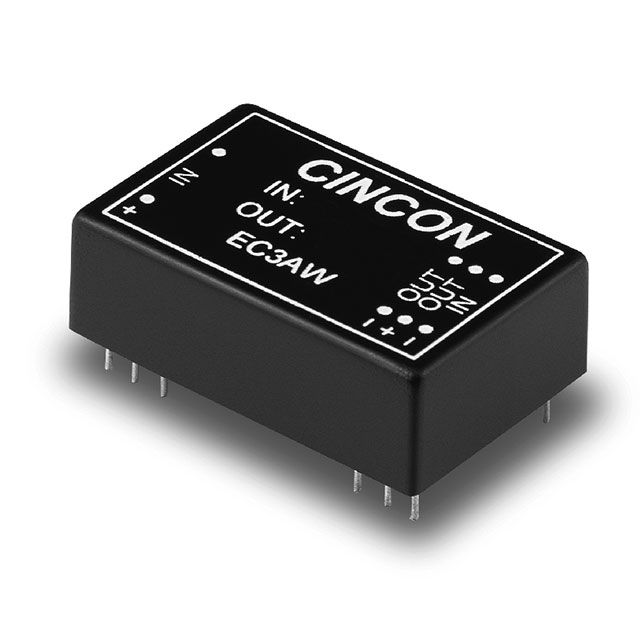

EC3AW13 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
CONVERTER: DC/DC; 3W; UIN: 18÷72VDC; UOUT: 15VDC; 15V; IOUT: 200MA
| Part | Mounting Type | Features | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Approval Agency | Power (Watts) | Voltage - Input (Min) [Min] | Number of Outputs | Current - Output (Max) [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Applications | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | Through Hole | SCP | 72 V | 71 °C | -25 °C | 15 V | CE | 3 W | 18 V | 1 | 200 mA | 24-DIP Module 14 Leads | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 500 V | ITE (Commercial) | Isolated Module | 77 % |
