PWR4318 Series

Catalog

RES SMD 1 OHM 5% 2W 4318

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Features	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Package / Case	Resistance	Composition	Number of Terminations [custom]	Supplier Device Package	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. PWR4318W1R00JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	50 ppm/░C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	1 Ohms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318W20R0JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	20 ppm/°C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	20 Ohms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318W4R70JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	50 ppm/░C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	4.7 Ohms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318W33R0J	5.16 mm	0.203 in	Current Sense Pulse Withstanding	20 ppm/°C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	33 Ohms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318W82R0JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	20 ppm/°C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	82 Ohms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318WR500JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	90 ppm/°C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	500 mOhms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318W2R20JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	50 ppm/░C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	2.2 Ohms	Wirewound	2	4318	5 %	155 C	-55 C

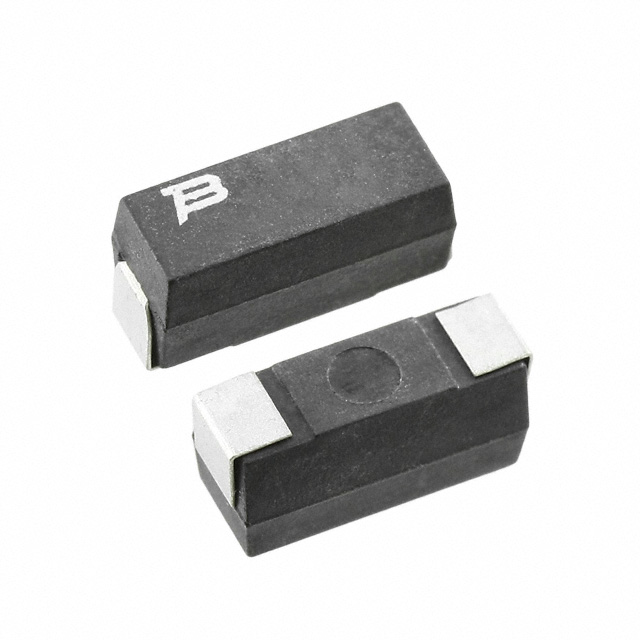

Bourns Inc. PWR4318W7R50JE	5.16 mm	0.203 in	Current Sense Pulse Withstanding	50 ppm/░C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	7.5 Ohms	Wirewound	2	4318	5 %	155 C	-55 C
Bourns Inc. PWR4318WR600F	5.16 mm	0.203 in	Current Sense Pulse Withstanding	90 ppm/°C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	600 mOhms	Wirewound	2	4318	1 %	155 C	-55 C
Bourns Inc. PWR4318W1R10F	5.16 mm	0.203 in	Current Sense Pulse Withstanding	50 ppm/░C	0.177 "	11 mm	4.5 mm	0.433 in	2 W	4318 J-Lead	1.1 Ohms	Wirewound	2	4318	1 %	155 C	-55 C
