EPR10 Series

Manufacturer: E-T-A

Catalog

AUTOMOTIVE RELAYS 150A 12-24VDC 1HZ HSS POWER RELAY

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Load Current	Output Type	Package / Case	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Grade	Circuit

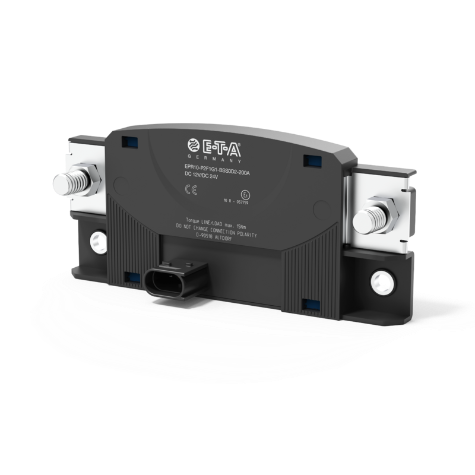

E-T-A EPR10-P5F1G1-HSS0D2-150A	85 °C	-40 C	Chassis Mount	150 A	DC	Module	CE	12 V	24 V	Stud	32 VDC	6 V
E-T-A EPR10-P5F1G1-HSS0D2-200A	85 °C	-40 C	Chassis Mount	200 A	DC	Module	CE	12 V	24 V	Stud	32 VDC	6 V
E-T-A EPR10-P7F1G1-HSS0D2-200A	85 °C	-40 C	Chassis Mount	200 A	DC		CE	12 V	24 V	Stud	32 VDC	0 V

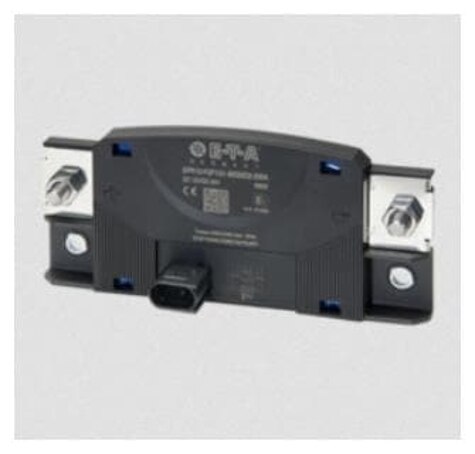

E-T-A EPR10-P5F1G1-HSS0D2-100A	85 °C	-40 C	Chassis Mount	100 A	DC	Module	CE	12 V	24 V	Stud	32 VDC	6 V
E-T-A EPR10-P7F1G2-HSS0D2-200A	85 °C	-40 C	Chassis Mount	2 A	AC		CE	0 V	36 V		24 V	12 V	Automotive	SPST-NO (1 Form A) x 2
E-T-A EPR10-P2F1G1-HSS0D2-200A	85 °C	-40 C	Chassis Mount	2 A	AC		CE	0 V	36 V		24 V	12 V	Automotive	SPST-NO (1 Form A) x 2
