PPG.M0 Series
Manufacturer: LEMO
Beta
⌘K

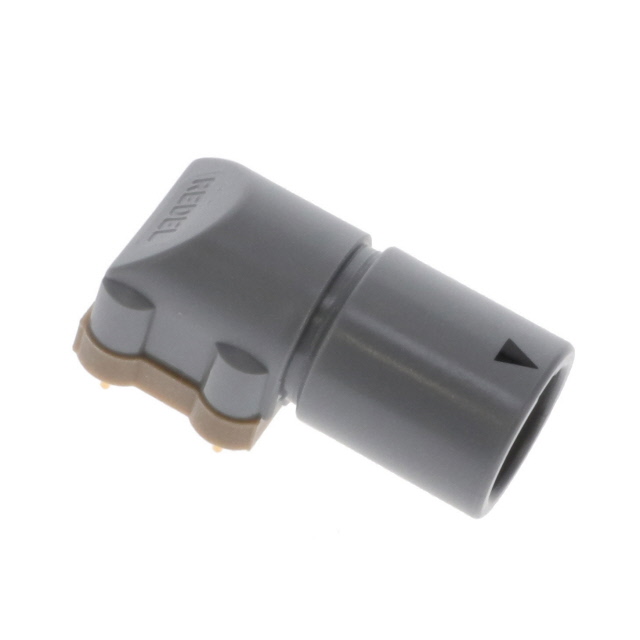

CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Primary Material | Shell Material | Orientation [custom] | Contact Finish - Mating | Backshell Material, Plating | Termination | Shell Size - Insert | Connector Type | Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Fastening Type | Number of Positions | Applications | Mounting Type | Features | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | M05 | Receptacle Female Sockets | Gray | 7 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 5 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded |
LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | Receptacle Female Sockets | Gray | 5 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 7 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded | |
LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | M06 | Receptacle Female Sockets | Black | 6 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 6 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded |
LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | M09 | Receptacle Female Sockets | Gray | 3 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 9 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded |
LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | M08 | Receptacle Female Sockets | Black | 5 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 8 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded |
LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | M06 | Receptacle Female Sockets | Gray | 6 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 6 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded |
LEMO | Plastic | Polysulfone (PSU) | G | Gold | Polysulfone (PSU) | Solder | M02 | Receptacle Female Sockets | Gray | 10 A | 150 °C | -50 °C | IP50 - Dust Protected | Detent Lock Push-Pull | 2 | Automotive Industrial Medical Testing Equipment & Measurement | Right Angle Through Hole | Backshell Board Guide | Unshielded |
