PFM1412 Series
Manufacturer: Delta Electronics
Beta
⌘K

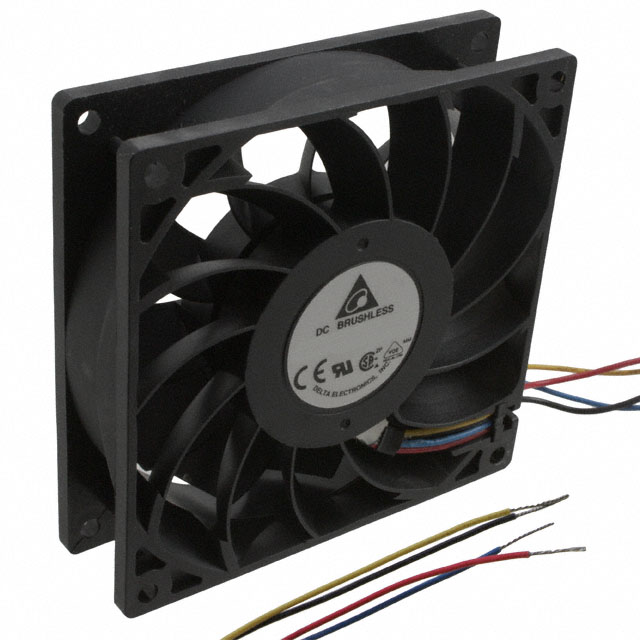

DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.8V 282.31CFM 70DB 140 X 140 X 38MM
| Part | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Weight [custom] | Weight [custom] | Width [y] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Fan Type | Power (Watts) | Bearing Type | Static Pressure | Static Pressure | Air Flow | Air Flow | RPM | Termination | Noise | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 3.9 A | 70000 Hrs | Plastic | 10.8 VDC | 12.6 VDC | 1.3 lbs | 589.7 g | 38 mm | CE cURus TUV | -10 °C | 60 °C | 12 VDC | Tubeaxial | 46.8 W | Ball | 2.033 in H2O | 506.4 Pa | 282.3 CFM | 7.9 m³/min | 6500 RPM | 4 Wire Leads | 70 dB(A) | Locked Rotor Protection PWM Control Speed Sensor (Tach) |
