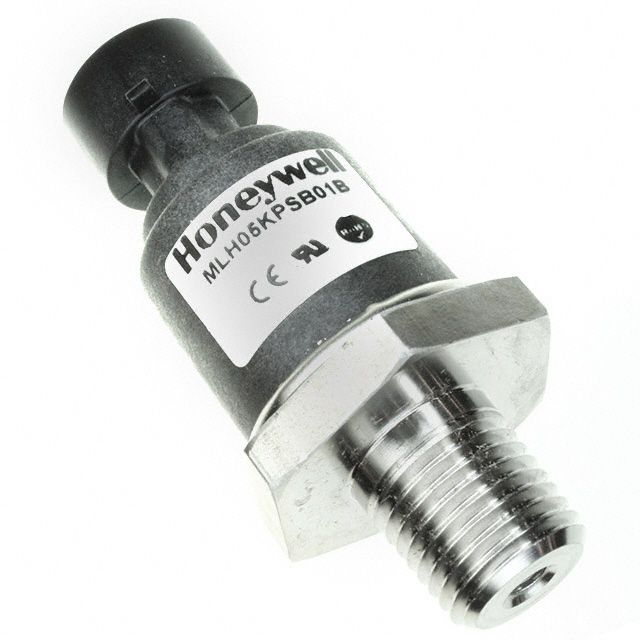

MLH05 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MLH ALL METAL PRESS SENSE -ATF
| Part | Maximum Pressure [Max] | Maximum Pressure [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Pressure Type | Port Style | Port Size | Port Size | Voltage - Supply [Max] | Voltage - Supply [Min] | Applications | Accuracy | Features | Output [Max] | Output [Min] | Output Type | Operating Pressure | Operating Pressure | Port Size [custom] | Port Size [x] | Port Size [x] | Port Size [custom] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 51710.68 kPa | 7500 PSI | 125 °C | -40 °C | Cylinder Metal | Sealed Gauge | Threaded | Male UNF | 0.4375 " 11.11 mm | 30 VDC | 9.5 V | Industrial Automation | 0.25 % | Amplified Output Temperature Compensated | 20 mA | 4 mA | Analog Current | 34473.79 kPa | 5000 PSI | |||||
Honeywell Sensing and Productivity Solutions | 51710.68 kPa | 7500 PSI | 125 °C | -40 °C | Cylinder Metal | Sealed Gauge | Threaded | 30 VDC | 8 V | Industrial Automation | 0.25 % | Amplified Output Temperature Compensated | 5 V | 1 V | Analog Voltage | 34473.79 kPa | 5000 PSI | NPT | 0.25 " | 6.35 mm | Male | Packard Metripak 150 | ||
Honeywell Sensing and Productivity Solutions | 51710.68 kPa | 7500 PSI | 125 °C | -40 °C | Cylinder Metal | Sealed Gauge | Threaded | Male | 6.35 mm | 30 VDC | 9.5 V | Industrial Automation | 0.25 % | Amplified Output Temperature Compensated | 20 mA | 4 mA | Analog Current | 34473.79 kPa | 5000 PSI | |||||
Honeywell Sensing and Productivity Solutions | 51710.68 kPa | 7500 PSI | 125 °C | -40 °C | Cylinder Metal | Sealed Gauge | Threaded | 30 VDC | 9.5 V | Industrial Automation | 0.25 % | Amplified Output Temperature Compensated | 20 mA | 4 mA | Analog Current | 34473.79 kPa | 5000 PSI | M12 | ||||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | 51710.68 kPa | 7500 PSI | 125 °C | -40 °C | Cylinder Metal | Sealed Gauge | Threaded | 30 VDC | 9.5 V | Industrial Automation | 0.25 % | Amplified Output Temperature Compensated | 20 mA | 4 mA | Analog Current | 34473.79 kPa | 5000 PSI | NPT | 0.25 " | 6.35 mm | Male | Packard Metripak 150 | ||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions |
