L1.25 Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

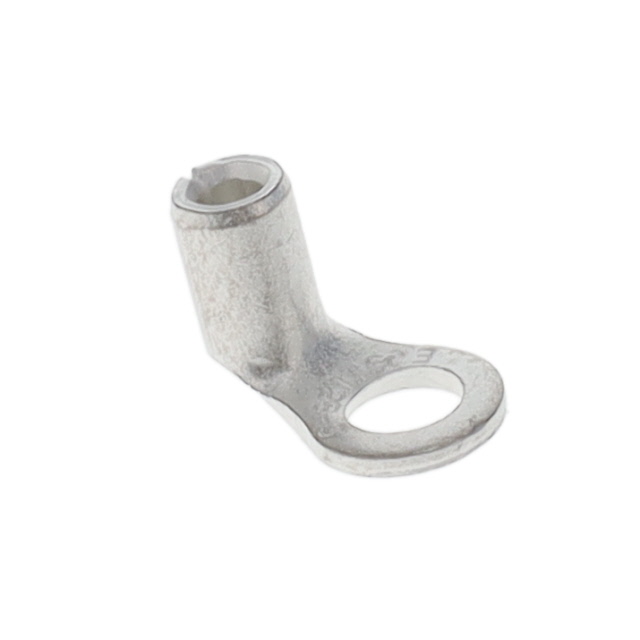

RING TONGUE TERMINAL
| Part | Stud/Tab Size | Termination | Insulation | Thickness | Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Features | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | M3 Stud | Crimp | Non-Insulated | 0.79 mm | 0.031 in | 16 AWG | 22 AWG | Brazed Seam | Circular | 5.5 mm | 0.217 in | Free Hanging (In-Line) Right Angle |
