5780 Series

Manufacturer: BRADY

Catalog

B689 5780-II WHT/GRN STYLE II

Part	Shape	Material - Body	Color - Legend	Print Type	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Application Specifics	Mounting Type	Features	Language	Color - Background	Applications	Length [x]	Length [x]	Legend (Symbol Only)	Location	Legend (Text)	Arrangement	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Min) [Min]	Width	Width	Outside Pipe Diameter (Min)	Width [x]	Width [x]	Length	Length	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]
BRADY 5780-II	Rectangle	Plastic	White	Pre-Printed	63.5 mm	2.5 in	Directionality	Snap On	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	63000 A 69000 A	Green	Pipe	660.4 mm	26 in	Directional Arrow	Outdoor	Vent	Symbol and Text	7.875 in	200.03 mm	304.8 mm	12 in
BRADY 5780-O	Rectangle	Plastic	White	Pre-Printed			Notice	Snap On	Chemical Resistant	63000 A 69000 A	Green	General			Directional Arrow	Outdoor	Vent	Text Only	1.375 in				34.93 mm	127 mm	127 mm	8 in	203.2 mm	0.5 in	12.7 mm

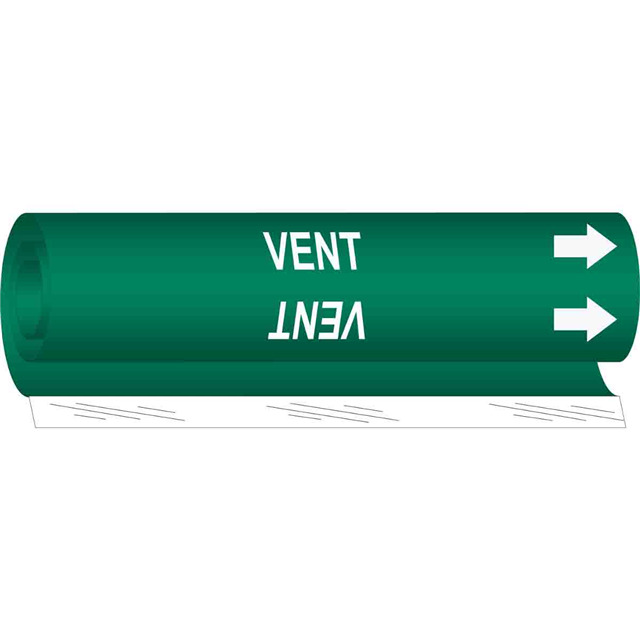

BRADY 5780-I	Rectangle	Plastic	White	Pre-Printed			Notice	Snap On	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	63000 A 69000 A	Green	Pipe			No Symbol	Outdoor	Vent	Text Only	2.375 in		203.2 mm	8 in	60.33 mm			9 in	228.6 mm			1.5 in	38.1 mm
