45150 Series
Manufacturer: 3M (TC)
Beta
⌘K

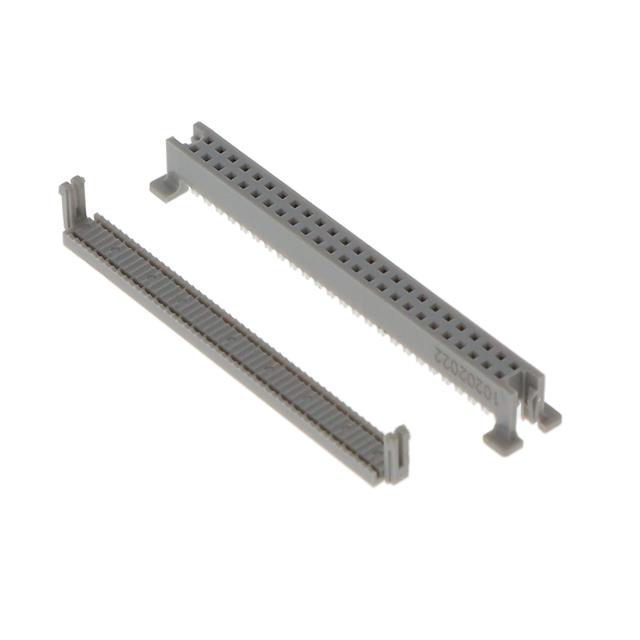

IDC CONN, RCPT, 50POS, 2ROW, 1.27MM ROHS COMPLIANT: YES
| Part | Number of Positions | Connector Type | Mounting Type | Row Spacing | Row Spacing | Contact Finish | Pitch [x] | Pitch [x] | Cable Termination | Number of Rows | Contact Type | Wire Gauge | Wire Type | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 50 | Receptacle | Free Hanging (In-Line) | 1.27 mm | 0.05 in | Gold | 0.05 in | 1.27 mm | IDC | 2 | Female Socket | 30 AWG | Ribbon Cable | Feed Through Polarizing Key | 0.76 Ám | 30 Áin | ||
 3M (TC) | 50 | Receptacle | Free Hanging (In-Line) | 1.27 mm | 0.05 in | Gold | 0.05 in | 1.27 mm | IDC | 2 | Female Socket | 30 AWG | Ribbon Cable | Feed Through | Flash | |||
3M (TC) | 50 | Receptacle | Free Hanging (In-Line) | 1.27 mm | 0.05 in | Gold | 0.05 in | 1.27 mm | IDC | 2 | Female Socket | 30 AWG | Ribbon Cable | Feed Through | 0.76 Ám | 30 Áin | ||
3M (TC) | 50 | Receptacle | Free Hanging (In-Line) | 1.27 mm | 0.05 in | Gold | 0.05 in | 1.27 mm | IDC | 2 | Female Socket | 30 AWG | Ribbon Cable | Feed Through Polarizing Key | Flash | Friction Lock | ||
3M (TC) | 50 | Receptacle | Free Hanging (In-Line) | 1.27 mm | 0.05 in | Gold | 0.05 in | 1.27 mm | IDC | 2 | Female Socket | 30 AWG | Ribbon Cable | Feed Through Polarizing Key | Flash |
