68002 Series

Catalog

CONN HEADER VERT 23POS 2.54MM

...

Part	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Shrouding	Current Rating (Amps)	Connector Type	Mounting Type	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Contact Finish - Post	Number of Positions	Insulation Material
Amphenol ICC (FCI) 68002-123HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder	23	30 Áin	0.76 Ám	Square	All	UL94 V-0	1
Amphenol ICC (FCI) 68002-132HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder		30 Áin	0.76 Ám	Square	All	UL94 V-0	1
Amphenol ICC (FCI) 68002-411HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C		0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder	11	100 çin	2.54 çm	Square	All	UL94 V-0	1	Tin
Amphenol ICC (FCI) 68002-207HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder	7	15 µin	0.38 µm	Square	All	UL94 V-0	1
Amphenol ICC (FCI) 68002-116	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder		30 Áin	0.76 Ám	Square	All	UL94 V-0	1		16
Amphenol ICC (FCI) 68002-118HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder	18	30 Áin	0.76 Ám	Square	All	UL94 V-0	1

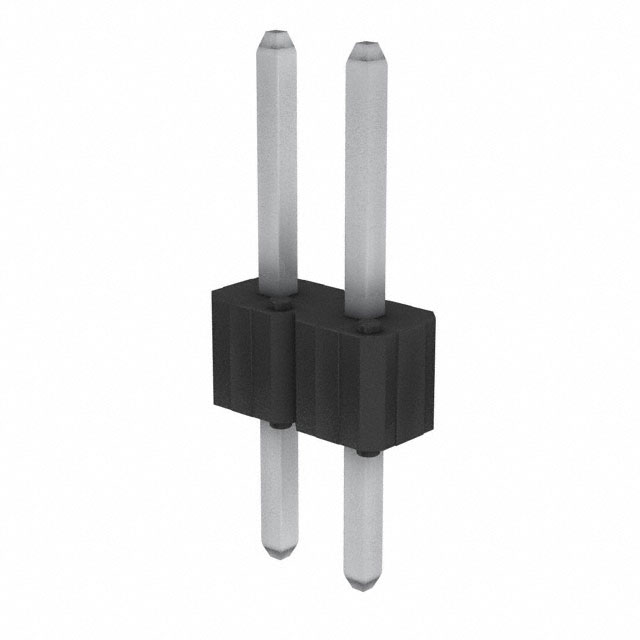

Amphenol ICC (FCI) 68002-402HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C		0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder	2	100 çin	2.54 çm	Square	All	UL94 V-0	1	Tin

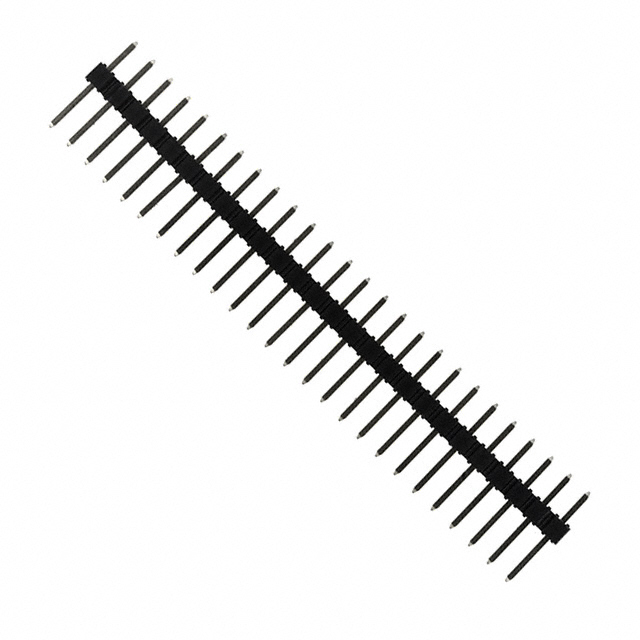

Amphenol ICC (FCI) 68002-226HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder	26	15 µin	0.38 µm	Square	All	UL94 V-0	1

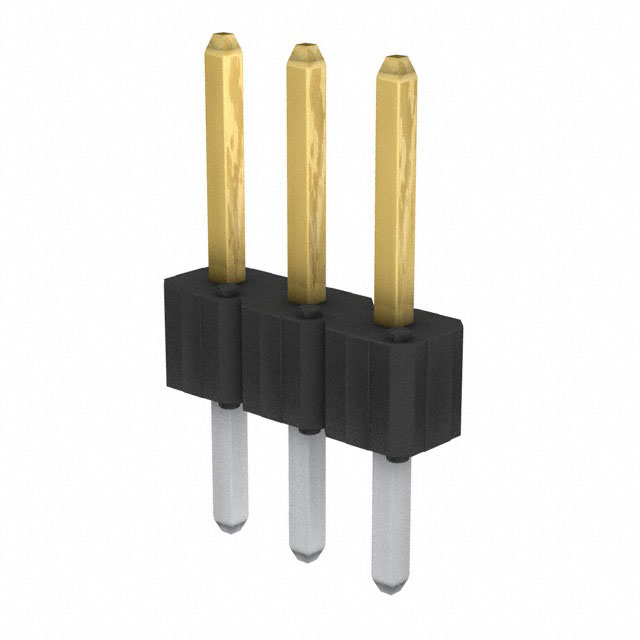

Amphenol ICC (FCI) 68002-103HLF	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder		30 Áin	0.76 Ám	Square	All	UL94 V-0	1
Amphenol ICC (FCI) 68002-100H	0.15 in	3.81 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	-65 ░C	130 °C	Gold or Gold GXT™	0.48 in	12.19 mm	Push-Pull	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Unshrouded	3 A	Header	Through Hole	Solder		30 Áin	0.76 Ám	Square	All	UL94 V-0	1		Cuttable	Liquid Crystal Polymer (LCP)
