TAS2505-Q1 Series

2-W, mono, digital & analog input Class-D audio amp with audio processing & mono headphone amplifier

Catalog

2-W, mono, digital & analog input Class-D audio amp with audio processing & mono headphone amplifier

Part	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Mounting Type	Supplier Device Package	Type	Grade	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Utilized IC / Part	Board Type	Features
Texas Instruments TAS2505TRGERQ1	1	2.6 W	Surface Mount	24-VQFN (4x4)	Class D	Automotive	1-Channel (Mono)	24-VFQFN Exposed Pad	105 °C	-40 °C	AEC-Q100	2.7 V	5.5 V

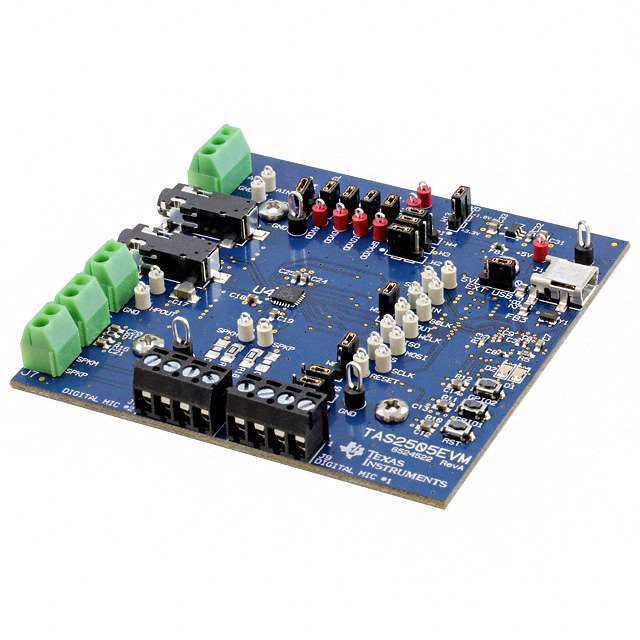

Texas Instruments TAS2505EVM		1 2 W 4 Ohm					1-Channel (Mono) with Mono Headphones					1.5 V	1.95 V	Board(s)	TAS2505	Fully Populated
Texas Instruments TAS2505IRGER		1 2 W 4 Ohm	Surface Mount	24-VQFN (4x4)	Class D		1-Channel (Mono) with Mono Headphones	24-VFQFN Exposed Pad	85 °C	-40 °C		1.5 V	1.95 V				I2C Shutdown Thermal Protection Volume Control
Texas Instruments TAS2505IRGET		1 2 W 4 Ohm	Surface Mount	24-VQFN (4x4)	Class D		1-Channel (Mono) with Mono Headphones	24-VFQFN Exposed Pad	85 °C	-40 °C		1.5 V	1.95 V				I2C Shutdown Thermal Protection Volume Control

Catalog

2-W, mono, digital & analog input Class-D audio amp with audio processing & mono headphone amplifier

Key Features

• AEC-Q100 Qualified with the following results for automotive applications:Device temperature grade 2: –40°C to 105°C ambient operating temperature rangeDevice HBM ESD classification level H2Device CDM ESD classification level C4BMono class-D BTL speaker amplifier2.6 W at 10% THD_N (4 Ω, 5.5 V)1.7 W at 10% THD+N (8 Ω, 5.5 V)Supports both digital and analog inputSingle supply 2.7 V to 5.5 VLoad diagnostic functions:Output-to-GND ShortTerminal-to-terminal shortOutput-to-power shortOver temperatureSupports 9-kHz to 96-kHz sample ratesTwo single-ended inputs with output mixing and level controlEmbedded power-on-resetProgrammable digital audio processing:Bass boostTrebleEQ (up to 6 biquads)I 2S, Left-justified, right-justified, DSP, and TDM audio interfacesI 2C and SPI Control With Auto-Increment24-Pin, VQFN wettable flank (automotive grade) packageAEC-Q100 Qualified with the following results for automotive applications:Device temperature grade 2: –40°C to 105°C ambient operating temperature rangeDevice HBM ESD classification level H2Device CDM ESD classification level C4BMono class-D BTL speaker amplifier2.6 W at 10% THD_N (4 Ω, 5.5 V)1.7 W at 10% THD+N (8 Ω, 5.5 V)Supports both digital and analog inputSingle supply 2.7 V to 5.5 VLoad diagnostic functions:Output-to-GND ShortTerminal-to-terminal shortOutput-to-power shortOver temperatureSupports 9-kHz to 96-kHz sample ratesTwo single-ended inputs with output mixing and level controlEmbedded power-on-resetProgrammable digital audio processing:Bass boostTrebleEQ (up to 6 biquads)I 2S, Left-justified, right-justified, DSP, and TDM audio interfacesI 2C and SPI Control With Auto-Increment24-Pin, VQFN wettable flank (automotive grade) package

Description

The TAS2505-Q1 is a mono Class-D speaker amp that supports both Digital and Analog inputs. The device is designed for automotive instrument cluster, emergency call (eCall), and telematics applications. Direct I 2S input removes the need for an external DAC in the audio signal path , and the integrated LDO enables single supply operation. In addition to integration, the device features programmable audio processing. The onboard DSP supports bass boost, treble, and EQ (up to 6 biquads). An on-chip PLL provides the high-speed clock needed by the DSP. The volume level is register controlled. The TAS2505-Q1 is a mono Class-D speaker amp that supports both Digital and Analog inputs. The device is designed for automotive instrument cluster, emergency call (eCall), and telematics applications. Direct I 2S input removes the need for an external DAC in the audio signal path , and the integrated LDO enables single supply operation. In addition to integration, the device features programmable audio processing. The onboard DSP supports bass boost, treble, and EQ (up to 6 biquads). An on-chip PLL provides the high-speed clock needed by the DSP. The volume level is register controlled.
